| | 1992 - 1997 |
| 30 Superforça Series |
|
Series map:
8630
8830
119.3kw
134.2kw
| Transmission options |
| 12-speed partially synchronized |
| 24-speed creeper |
| Transmission |

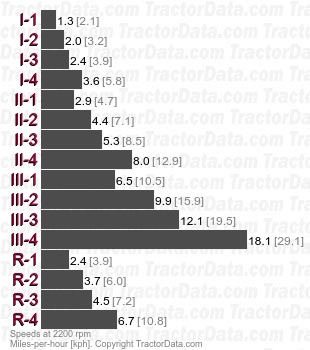

| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 305mm cerametallic disc
|
| Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range. |
| Speeds |
| With 18.4x38 rear tires. |
|
| Transmission |

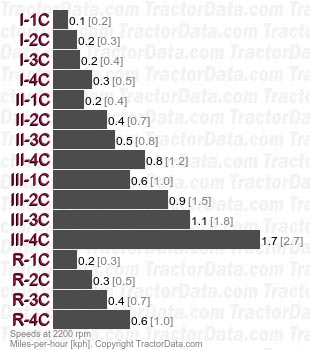

| Type | creeper
|
| Gears | 24 forward and 8 reverse
|
| Clutch | 305mm cerametallic disc
|
| Four gears (1-4) in three ranges (I, II, III) plus reverse (R) range with additional dual range shift (creeper/normal). |
| Speeds |
| With 18.4x38 rear tires. |
|
