| | 1996 - 1999 |
| Utility tractor |
|
Series map:
L60
L65
L75
44.7kw
48.5kw
55.9kw
Note: the New Holland model L65 is the same as the New Holland 4835. The following data is from the 4835 listing. |
| Transmission options |
| 12-speed partially synchronized |
| 12-speed partiallly synchronized with sync shuttle |
| 24-speed partial power shift |
| Transmission |
| Transmission | Synchro
|
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Four gears in three ranges, plus reverse. Gear shifts are synchronized. |

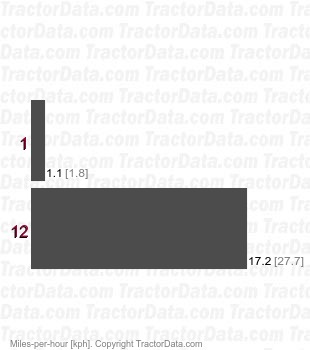

| Speeds |
|
| Transmission |
| Transmission | Synchro Command
|
| Type | partiallly synchronized with sync shuttle
|
| Gears | 12 forward and reverse
|
| Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized. |
| Transmission |
| Transmission | Dual Command
|
| Type | partial power shift
|
| Gears | 24 forward and 12 reverse
|
| Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed. |
