Allis Chalmers D21 Series II
| | 1963 - 1969 |
|
| D Series | | Row-Crop tractor |
|
Series map:
D21
134.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Allis Chalmers
|
| Row-Crop tractor |
| Built in West Allis, Wisconsin, USA |
| Total built | 2,409
|
| Original price was $10,500 in 1969 |
| The upgraded D21 II began at serial number 2201 in 1965. |
| Allis Chalmers D21 Power |
| PTO (claimed) | 121 hp
90.2 kW
|
| Plows | 7
|
| Drawbar (tested) | 116.41 hp
86.8 kW
|
| PTO (tested) | 127.75 hp
95.3 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Power steering |
| Band actuated disc brakes |
| Open operator station. |
| Tractor hitch |
| Rear Type | III/II
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| D21 Serial Number Location |
 |

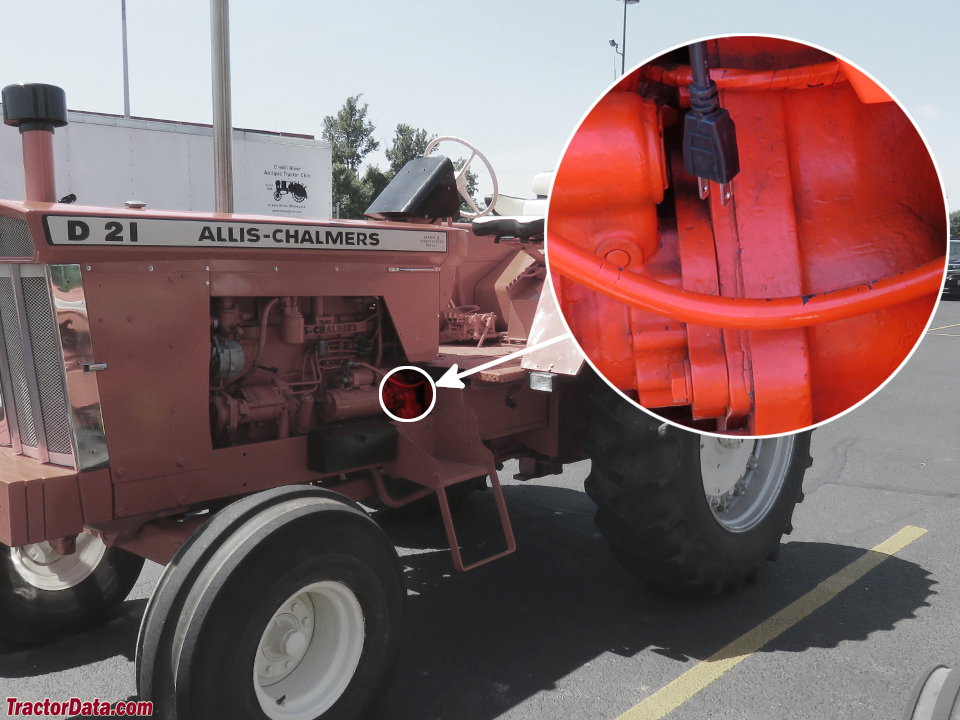

| Serial number on the left side of the Allis-Chalmers D21, stamped into the flange near the starter mounting. |
| D21 Serial Numbers |
| 1963 | 100 (Series I)
|
| 1964 | 1417 (Series I)
|
| 1965 | 2079 (Series I)
|
| Final | 2129 (Series I)
|
| 1965 | 2130 (Series II)
|
| 1966 | 2408 (Series II)
|
| 1967 | 2863 (Series II)
|
| 1968 | 3777 (Series II)
|
| 1969 | 4498 (Series II)
|
| Final | 4609 (Series II)
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | Delco-Remy generator
|
| Charging amps | 32
|
| Batteries | 2
|
| | 4 OptOptional
|
| Battery volts | 12
|
| Battery AH | 95
|
| References |
 |
| Operating Instructions Model D21 Series II Turbocharged Diesel Tractor (TM-385A) published in 1965 |
| It's here! New One-Ninety XT published in 1965, by Allis Chalmers |
