| | 1988 - 1995 |
| Orchard/Vineyard tractor |
|
Series map:
5560F
6560F
39.0kw
48.5kw
| Transmission options |
| 12-speed syncromesh |
| 24-speed creeper |
| Transmission |
| Type | syncromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm mechanical dry disc
|

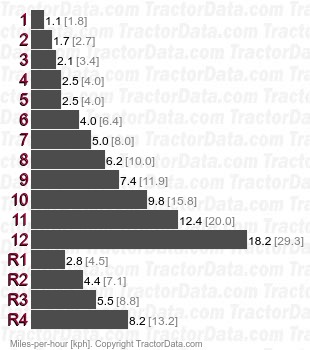

| Speeds |
| With 14.9R20 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 24 forward and 12 reverse
|
| Clutch | 279.4mm mechanical dry disc
|
