CaseIH Farmall 140A Transmission


CaseIH Farmall 140A tractor photo
2012 - 2025
Model year
Farmall 100A Series
Utility tractor
Series map:
Farmall 130A
Farmall 140A
130.0hp
140.0hp
Transmission options
8-speed power shuttle
8-speed mechanical shuttle
16-speed power shuttle
Transmission
Typepower shuttle
Gears8 forward and reverse
Speeds
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.
Farmall 140A  power shuttle speeds
Transmission
Typemechanical shuttle
Gears8 forward and reverse
Transmission
TransmissionHi-Lo
Typepower shuttle
Gears16 forward and 8 reverse
Speeds

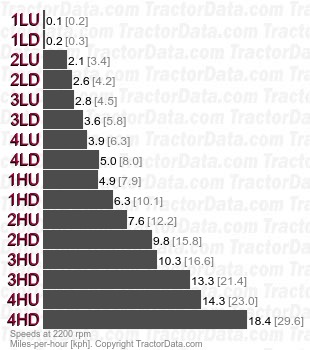

Farmall 140A Hi-Lo power shuttle speeds
