Tractors > CaseIH > Farmall 130A

CaseIH Farmall 130A Tests



CaseIH Farmall 130A tractor photo
2015 -
Farmall 100A Series
Utility tractor
Series map:
Farmall 120A
Farmall 130A
Farmall 140A
120.0hp
130.0hp
140.0hp
OCED Tractor Test 2158

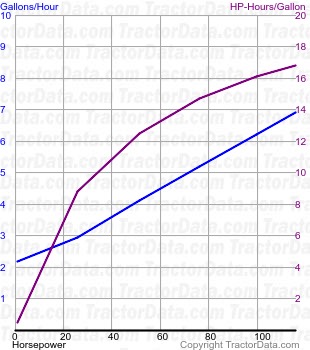

Farmall 130A fuel use from test 1039
OCED Tractor Test 2158
Diesel 16-speed 4WD
September 2 - October 3, 2016
Link: OCED Tractor Test 2158 file
PTO performance
Max power117.69 hp
87.8 kW
Fuel use6.7 gal/hour
25.4 l/hour
Power at rated engine speed115.68 hp
86.3 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed115.25 hp
85.9 kW
Fuel use6.4 gal/hour
24.2 l/hour
Drawbar performance
Max power94.17 hp
70.2 kW
Fuel use6.9 gal/hour
26.1 l/hour
Max pull8790 lbs
3987 kg
