CaseIH Farmalll 110A Transmission


CaseIH Farmalll 110A tractor photo
2012 - 2025
Model year
Farmall 100A Series
Utility tractor
Series map:
Farmalll 110A
Farmall 120A
110.0hp
120.0hp
Transmission options
8-speed power shuttle
8-speed mechanical shuttle
16-speed power shuttle
Transmission
Typepower shuttle
Gears8 forward and reverse
Speeds
With 18.4-34 rear tires. Reverse speeds are 3% faster than forward speeds.

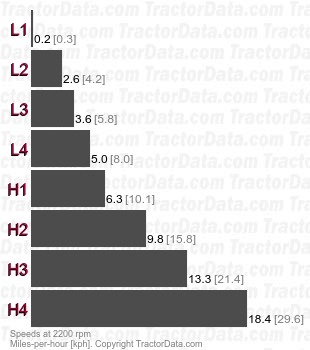

Farmalll 110A  power shuttle speeds
Transmission
Typemechanical shuttle
Gears8 forward and reverse
Transmission
TransmissionHi-Lo
Typepower shuttle
Gears16 forward and 8 reverse
Speeds

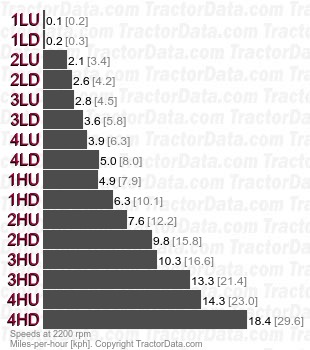

Farmalll 110A Hi-Lo power shuttle speeds
