John Deere 6515 Transmission


No photo available
2003 - 2005
6015 Series
Utility tractor
Series map:
6215
6515
70.1kw
85.8kw
Transmission options
12-speed fully synchronized
16-speed power shuttle
Transmission
TransmissionSyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchwet disc
Three gears (1-3), plus reverse (R), in four ranges (A-D).
Speeds
6515 SyncroPlus fully synchronized speeds
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears16 forward and reverse
Clutchwet disc
Four gears (1-4) in four ranges (A-D) with left-hand shuttle shift.
Speeds
With 18.4-30 rear tires. Reverse speeds are 4% faster than forward. 30 KPH transmission shown, 40 KPH option available.

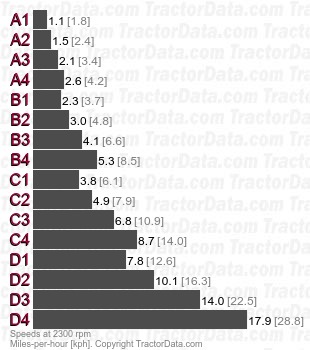

6515 PowrReverser power shuttle speeds
