John Deere 6215 Engine


No photo available
2003 - 2005
6015 Series
Utility tractor
Series map:
6215
6515
70.1kw
85.8kw
Engine Detail
John Deere 4045TL272
turbocharged diesel
4-cylinder
liquid-cooled
Displacement275 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage I
Rated Power (net)90 hp
67.1 kW
Rated Power (gross)94 hp
70.1 kW
Maximum Power (gross)97 hp
72.3 kW
Rated RPM2300
Idle RPM845-2465
Operating RPM1000-2300
Torque281 lb-ft
381.0 Nm
Torque RPM1500
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power4 hp
3.0 kW
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

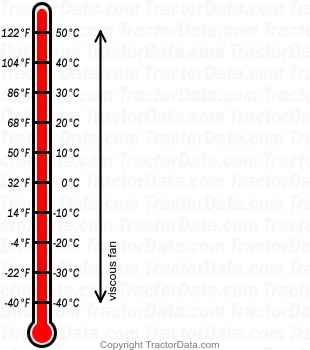

6215 diesel engine oil chart
