Tractors > John Deere > 5036C

John Deere 5036C



John Deere 5036C tractor photo
2011 -
5C Series
Series map:
5036C
5039C
26.8kw
29.1kw
Production
ManufacturerJohn Deere
Built in Pune, Maharashtra, India
John Deere 5036C Engine
John Deere 2.9L 3-cyl diesel
Fuel tank11.9 gal
45.0 L
Engine details ...
John Deere 5036C Transmission
8-speed collar shift gear
Transmission details ...
John Deere 5036C Power
Engine36 hp
26.8 kW
PTO (claimed)31 hp
23.1 kW
Mechanical
Two-wheel drive
Steeringmanual
Steeringpower OptOptional
Wet disc brakes
Open operator station.
Photos
No photos of the John Deere 5036C are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow5.3 gpm
20.1 lpm
Steering flow4.7 gpm
17.8 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)2205 lbs
1000 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@1575
Dimensions & Tires
Wheelbase73.6 inches
186 cm
Weight3814 lbs
1730 kg
Front tire6.0x16
Rear tire12.4x28
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery volts12
Battery AH88
References

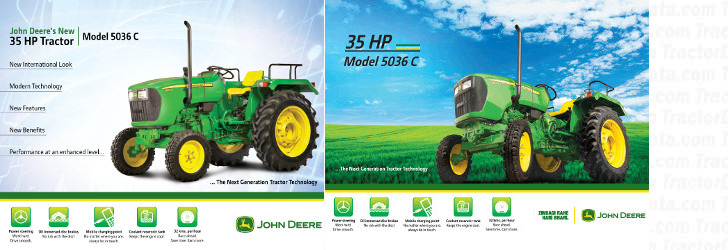

5036C references literature
New 35 HP Tractor Model 5036 C published in 2012, by John Deere
35 HP Model 5036 C published in 2014, by John Deere
