John Deere 5039D Transmission


John Deere 5039D tractor photo
2015 -
5D Series
Series map:
5038D
5039D
5042D
28.3kw
29.1kw
31.3kw
Transmission
Typecollar shift gear
Gears8 forward and 4 reverse
Oil capacity33.8 qts
32.0 L
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.

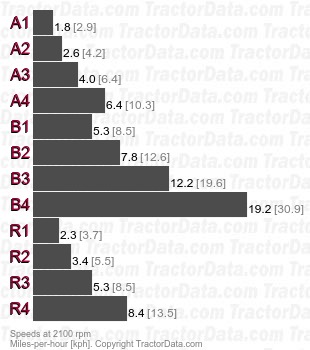

Speeds
With 13.6x28 rear tires.
5039D  collar shift gear speeds
