John Deere BN
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| Total built | 3584 (BN - early styled) |
| 446 (BNH - early styled) | |

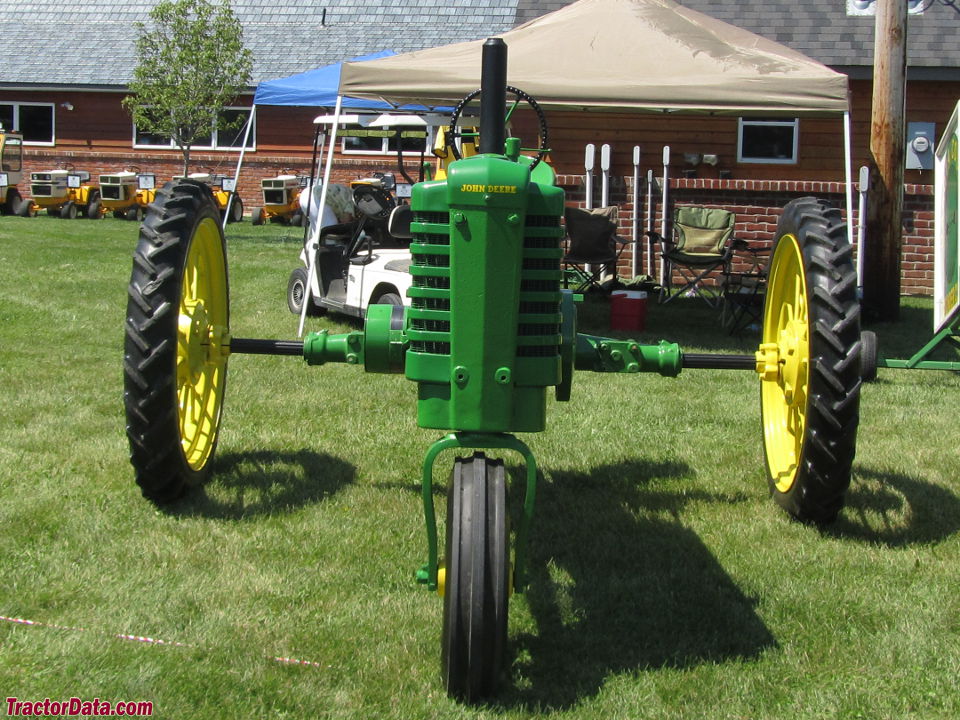

| The John Deere BN (B-Narrow) was designed for use in row crops with narrow spacing. The BN was equipped with a single front wheel for work in crop rows as narrow as 12 inches. The BN was also available in a high-clearance option, the BNH, with higher clearance and wide rear tread options. | |
| Variants | |
| B | tricycle front axle |
| BR | fixed front axle |
| BO | Orchard |
| BN | narrow row-crop |
| BNH | high-clearance BN |
| BI | industrial tractor |
| John Deere BN Engine | |
| John Deere 2.9L 2-cyl all fuel | |
| Fuel tank | 12 gal 45.4 L |
 Engine details ... | |
| John Deere BN Transmissions | |
| 4-speed unsynchronized gear | |
| 6-speed unsynchronized gear | |
 Transmission details ... |
| John Deere BN Power | |
| Drawbar (claimed) | 25 hp 18.6 kW |
| Belt (claimed) | 28 hp 20.9 kW |
| Plows | 2 (14-inch) |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station with pressed steel seat. |
| Photos | |
 | |
 John Deere BN photos... | |
| Hydraulics | |
| Type | Powr-Trol |
| Valves | 1 |
| Tractor hitch | |
| Type | John Deere Power Lift OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| BN Wheelbase | 85 inches 215 cm |
| BNH Wheelbase | 85.875 inches 218 cm |
| Weight | 2875 to 2965 pounds |
| Front tire | 9.00-10 |
| Rear tire | 8-38 |
 Full dimensions and tires ... | |

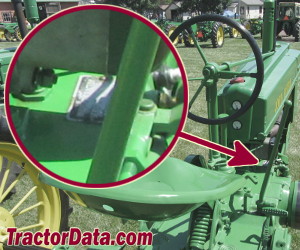

| BN Serial Number Location | |
 | |
| Right side of the transmission case, on top, under the magneto. |
| BN Serial Numbers | |
| 1939 | 60000 |
| 1940 | 78526 |
| 1941 | 96000 |
| 1942 | 118721 |
| 1943 | 136315 |
| 1944 | 149219 |
| 1945 | 166880 |
| 1946 | 179788 |
| 1947 | 190678 |
| Final | 200223 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Charging system | generator |
| Battery volts | 6 |
| References | |
 | |
| Instructions for General Purpose Tractors Model B (DIR-218) published in 1939 | |
| Operator's Manual Model B Series Tractor (OM-R2005R) | |
| General Catalog published in 1940, by John Deere |
