John Deere 6120E

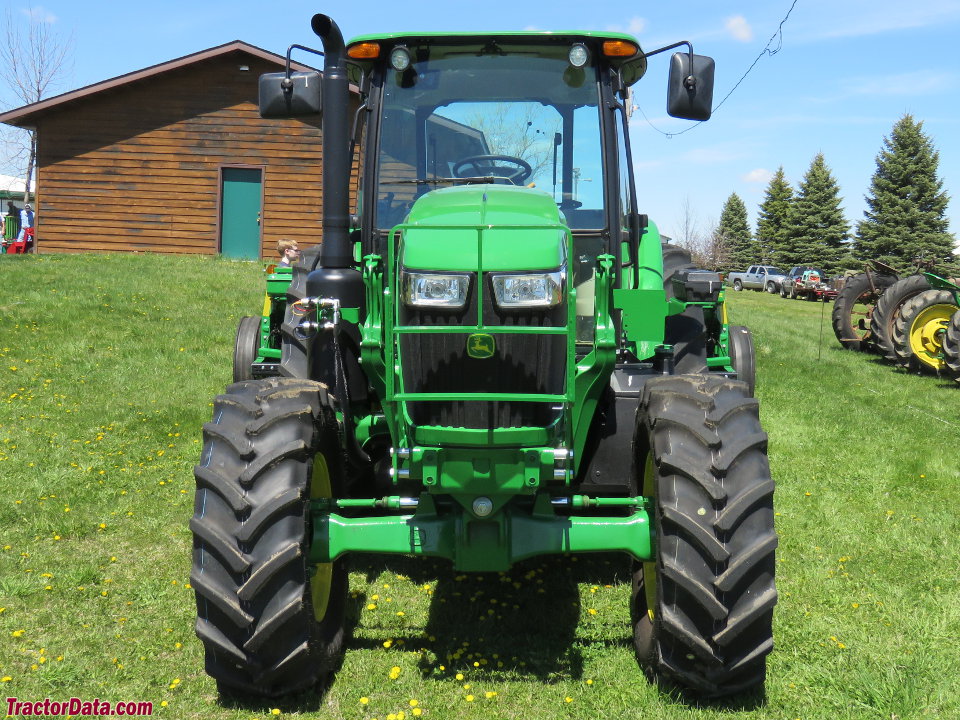

John Deere 6120E tractor photo
2016 -
6E Series
Utility tractor
Series map:
6105E
6120E
6135E
105.0hp
120.0hp
135.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Saltillo, Mexico
Original price$69,650 (2015 ROPS )
$79,014 (2015 Cab )
Variants
6120EHhigh-crop
John Deere 6120E Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6120E Transmissions
12-speed
24-speed two-speed power shift
Transmission details ...
John Deere 6120E Power
Engine (gross)120 hp
89.5 kW
PTO (claimed)102 hp
76.1 kW
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear
4WD Differential locklimited-slip front
Two-post foldable ROPS. Cab optional with air-conditioning. AutoTrac ((Optional steering kit))
Hydraulics
Typeopen center
Pressure2828 psi
195.0 bar
Valves2 to 3
Pump flow20 gpm
75.7 lpm
Tractor hitch
Rear TypeII
Controldraft sensing OptOptional
Rear lift (at 24"/610mm)550 lbs
249 kg
 7300 lbsOptOptional
3311 kg
Rear Armstelescopic draft arms
DrawbarCat. 2
 Cat. 2 HD OptOptional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Engine RPM540@2085
 1000@2067
Dimensions & Tires
2WD Wheelbase96.7 inches
245 cm
4WD Wheelbase96.5 inches
245 cm
Full dimensions and tires ...
6120E Serial Number Location
John Deere 6120E serial number location
Serial number plate on the right side of the 6120E tractor frame, above the front axle.
Electrical
Groundnegative
Battery volts12
