John Deere 9620RX
| | 2016 - 2021 |
| 9R Series | | Articulated Crawler tractor |
|
Series map:
9570RX
9620RX
570.0hp
620.0hp
| Production |
| Manufacturer | John Deere
|
| Articulated Crawler tractor |
| Built in Waterloo, Iowa, USA |
| Original price was $574,786 in 2015 |
| John Deere 9620RX Power |
| Engine (gross) | 620 hp
462.3 kW
|
| Drawbar (tested) | 494.32 hp
368.6 kW
|
| PTO (tested) | 357.89 hp
266.9 kW
|
 Performance test details ... |
| Mechanical |
| Drive | articulated-crawler
|
| CommandView III cab standard with suspension and air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink ready |
| Hydraulics |
| Type | closed-center pressure/flow compensated
|
| Valves | 4 to 8
|
| Pump flow | 58 gpm
219.5 lpm
|
| | 115 gpm*Optional, with second 57GPM pump
435.3 lpm
|
| SCV flow | 35 gpm
132.5 lpm
|
| | 42 gpm*Flow at 19.1mm coupler with high-flow hydraulic option.
159.0 lpm
|
| Tractor hitch |
| Rear Type | IV/IVN OptOptional
|
| Rear lift | 15000 lbs
6804 kg
|
| | 20000 lbs
9072 kg
|
| Drawbar | Cat. 5 HD
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 1000 (1.75)
|

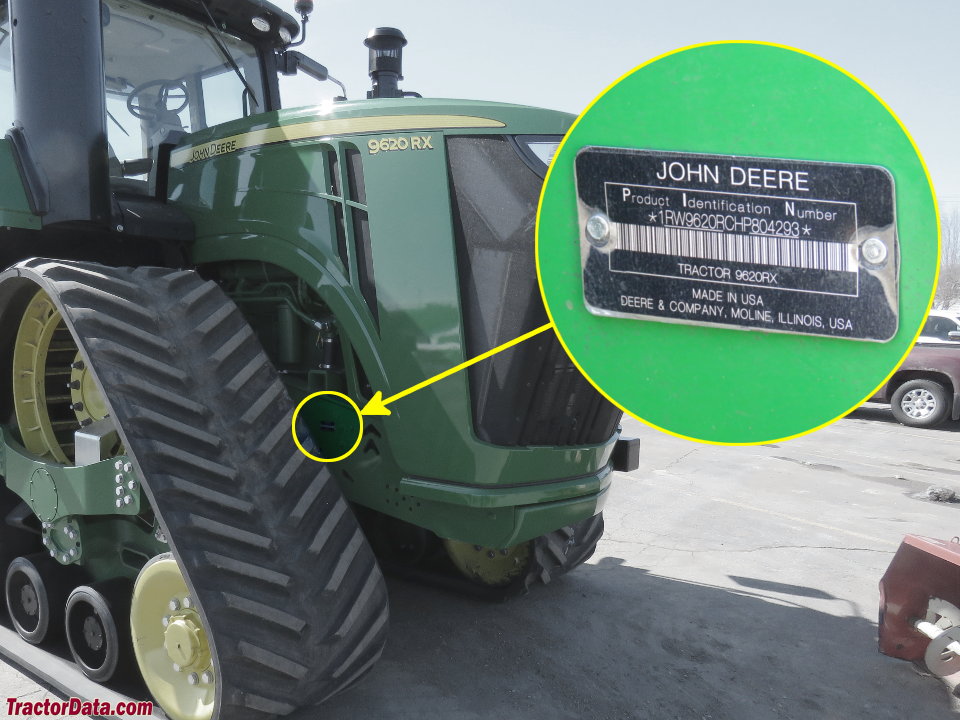

| 9620RX Serial Number Location |
 |
| The John Deere 9620RX serial number plate on the right side of the tractor frame, just ahead of the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| | 240 OptOptional
|
| Charging volts | 12
|
| Batteries | 4
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| 9RX Series Tractors published in 2015, by John Deere |
