John Deere 9570RX Tests


John Deere 9570RX tractor photo
2016 - 2021
9R Series
Articulated Crawler tractor
Series map:
9520RX
9570RX
9620RX
520.0hp
570.0hp
620.0hp
OCED Tractor Test 2173

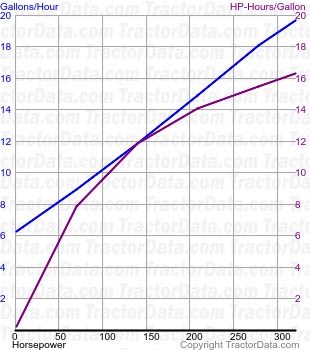

9570RX fuel use from test 1087
OCED Tractor Test 2173
Diesel 18-speed crawler
April 7 - 19, 2017
Link: OCED Tractor Test 2173 file
PTO performance
Max power355.97 hp
265.4 kW
Fuel use19.2 gal/hour
72.7 l/hour
Power at rated engine speed320.42 hp
238.9 kW
Fuel use19.7 gal/hour
74.6 l/hour
Power at rated PTO speed347.67 hp
259.3 kW
Fuel use20.0 gal/hour
75.7 l/hour
Drawbar performance
Max power446.57 hp
333.0 kW
Fuel use28.5 gal/hour
107.9 l/hour
Gear 7 used for power test.
Max pull48424 lbs
21965 kg
Gear 2 used for pull test.
