John Deere 9470RX Tests


John Deere 9470RX tractor photo
2016 - 2021
9R Series
Articulated Crawler tractor
Series map:
9470RX
9520RX
470.0hp
520.0hp
OCED Tractor Test 2170

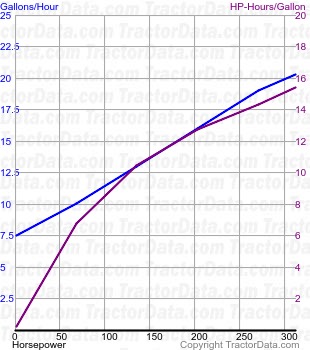

9470RX fuel use from test 1051
OCED Tractor Test 2170
Diesel 18-speed crawler
November 14 - 28, 2016
Link: OCED Tractor Test 2170 file
PTO performance
Max power363.62 hp
271.2 kW
Fuel use19.8 gal/hour
74.9 l/hour
Power at rated engine speed312.16 hp
232.8 kW
Fuel use20.2 gal/hour
76.5 l/hour
Power at rated PTO speed349.60 hp
260.7 kW
Fuel use20.4 gal/hour
77.2 l/hour
Drawbar performance
Max power352.69 hp
263.0 kW
Fuel use23.8 gal/hour
90.1 l/hour
Gear 7 used for power test.
Max pull53762 lbs
24386 kg
Gear 1 used for pull test.
