Tractors > Deutz-Fahr > M620

Deutz-Fahr M620

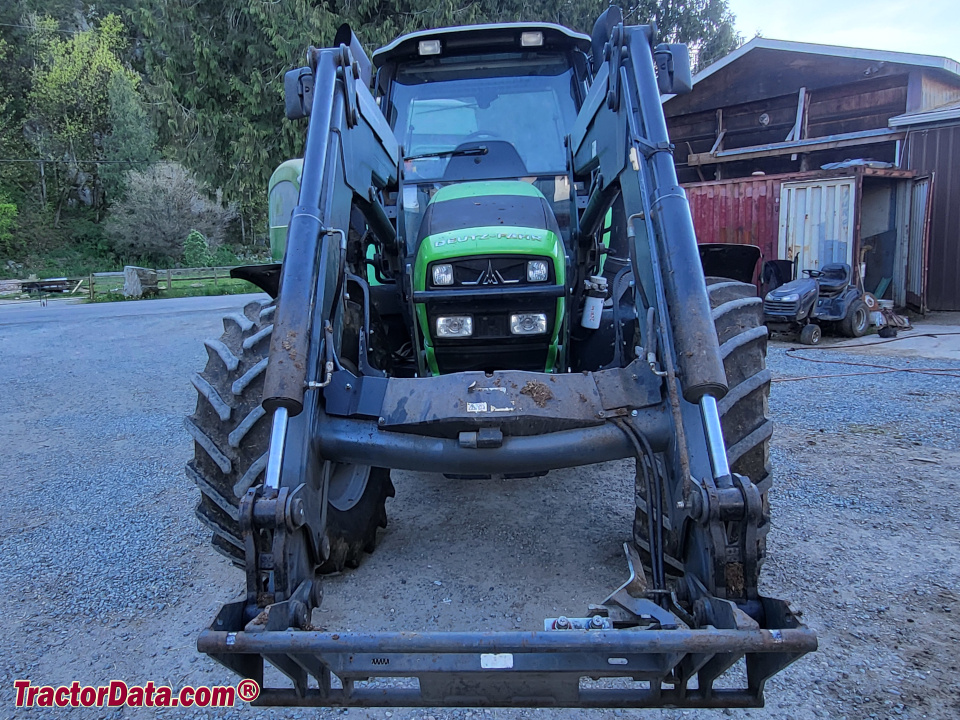

Deutz-Fahr M620 tractor photo
2007 - 2009
Agrotron M Series
Series map:
M610
M620
M640
98.4kw
115.6kw
127.5kw
Production
ManufacturerDeutz-Fahr
Deutz-Fahr M620 Engine
Deutz 6.1L 6-cyl diesel
Engine details ...
Deutz-Fahr M620 Transmissions
24-speed partial power shift
40-speed creeper
Transmission details ...
Deutz-Fahr M620 Power
Engine155 hp
115.6 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.
Photos
No photos of the Deutz-Fahr M620 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel71.3 gal
269.9 L
Hydraulic system10.6 gal
40.1 L
Hydraulics
Typeopen center
 load sensing OptOptional
Capacity10.6 gal
40.1 L
Pressure2900 psi
200.0 bar
Rear valves4
Pump flow21.9 gpm*Open center
82.9 lpm
 31.7 gpm*Load sensing
120.0 lpm
Steering flow11 gpm
41.6 lpm
Steering press.2600 psi
179.3 bar
Tractor hitch
Rear TypeIII/II
Controlposition and draft control
Rear lift13640 lbs
6187 kg
 20240 lbsOptOptional
9180 kg
Front HitchII
Front lift8800 lbs
3991 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Engine RPM540@1995
 540E@1610
 1000@1995
 1000E@1610
Front PTOindependent OptOptional
Front PTO Type1000
Engine RPM1000@1960
Dimensions & Tires
Wheelbase104.3 inches
264 cm
Weight12730 lbs
5774 kg
Front tire480/70R24
Rear tire520/70R38
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps150
Battery volts12
Battery AH143
 190 OptOptional
