Tractors > McCormick Intl > X6.470

McCormick Intl X6.470



McCormick Intl X6.470 tractor photo
2014 -
X6 Series
Series map:
X6.460
X6.470
X6.480
131.0hp
150.0hp
170.0hp
Production
ManufacturerMcCormick Intl (a part of Argo)
McCormick Intl X6.470 Engine
BetaPower 4.5L 4-cyl diesel
Fuel tank71.3 gal
269.9 L
Exhaust fluid (DEF)10 gal
37.9 L
Engine details ...
McCormick Intl X6.470 Transmissions
18-speed
54-speed
Transmission details ...
McCormick Intl X6.470 Power
Engine (gross)150 hp
111.9 kW
Engine (max)163 hp
121.5 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic
Wet disc brakes
Trailer brakeshydraulic OptOptional
 pneumatic OptOptional
Cab standard with air-conditioning. Optional pneumatic seat suspension.
Photos

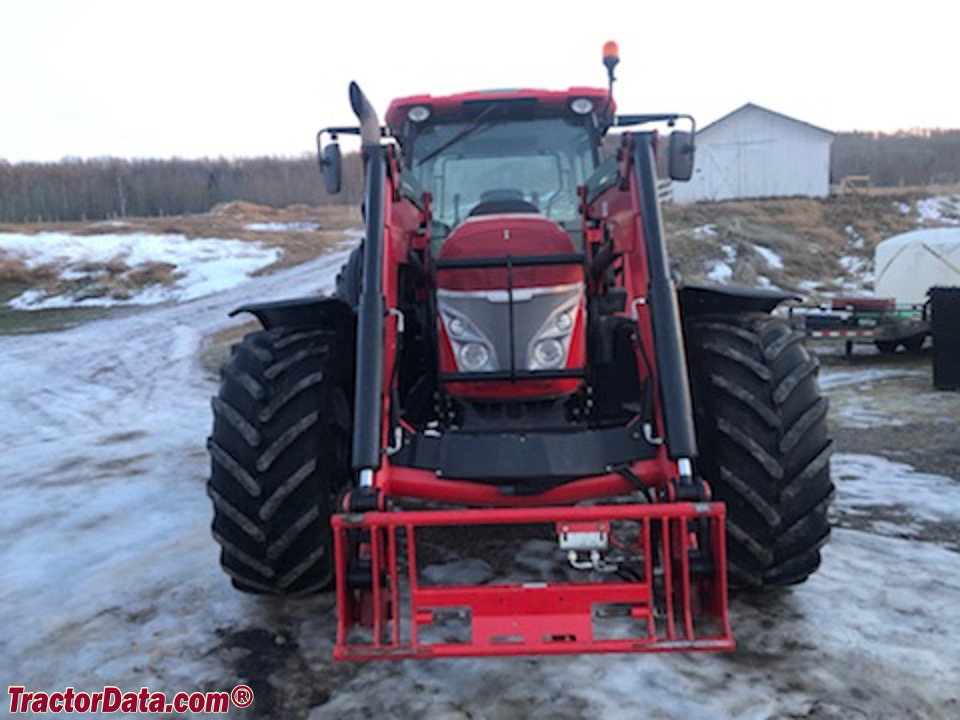

McCormick X6.470.
McCormick Intl X6.470 photos...
Hydraulics
Valves3 to 5
Pump flow23 gpm
87.1 lpm
Tractor hitch
Rear TypeIII/II
Controlposition and draft control
Rear lift18480 lbs
8382 kg
Front HitchII
Front lift7700 lbs
3492 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000
Front PTOindependent OptOptional
Front PTO Type1000
Dimensions & Tires
Wheelbase107 inches
271 cm
Weight13200 lbs
5987 kg
Front tire480/65R28
Rear tire650/65R38
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
