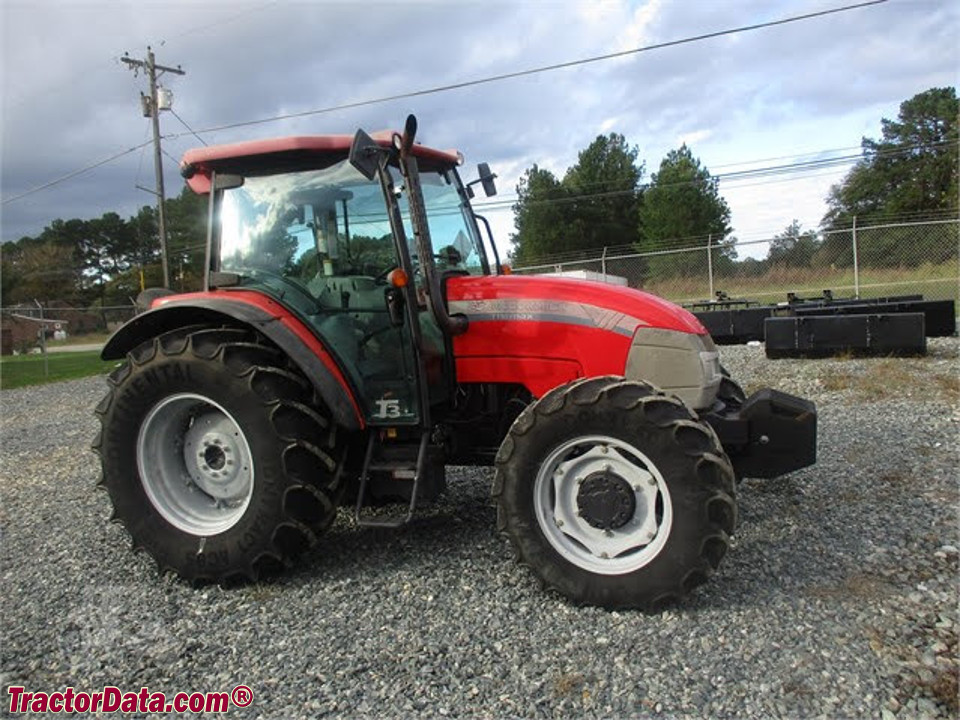

McCormick Intl T110 Max
| | 2009 - 2013 |
| T Max Series | | Utility tractor |
|
| Production |
| Manufacturer | McCormick Intl (a part of Argo)
|
| Utility tractor |
| Built in Italy |
| McCormick Intl T110 Max Power |
| Engine | 102 hp
76.1 kW
|
| PTO (claimed) | 86.5 hp
64.5 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | electro-hydraulic
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS. Cab available with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Pump flow | 13.8 gpm
52.2 lpm
|
| Steering flow | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift | 9590 lbs
4350 kg
|
| Front Hitch | II
|
| Front lift | 3968 lbs
1799 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000
|
| Front PTO | independent
|
| Front PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
