John Deere 5085E



John Deere 5085E tractor photo
2013 - 2017
Model year
5E Series
Utility tractor
Series map:
5085E
5100E
85.0hp
100.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
John Deere 5085E Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 5085E Transmissions
12-speed
24-speed
Transmission details ...
John Deere 5085E Power
Engine (gross)85 hp
63.4 kW
PTO (claimed)70 hp
52.2 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockmechanical rear
Power steering
Hydraulic wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning.
Photos
John Deere 5085E
John Deere 5085E photos...
Capacity
Fuel30 gal
113.6 L
Hydraulic system11.5 gal
43.5 L
Hydraulics
Typeopen center
Capacity11.5 gal
43.5 L
Pressure2900 psi
200.0 bar
Valves2 or 3
SCV flow15.9 gpm
60.2 lpm
Total flow22.5 gpm
85.2 lpm
Tractor hitch
Rear TypeII
Controlmechanical top-link draft sensing
Rear lift3213 lbs
1457 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/540E
 540/1000 OptOptional
Engine RPM540@ 2400
 540E@1716
 1000@2400
Dimensions & Tires
Wheelbase92.5 inches
234 cm
Weight7275 to 8150 pounds
Front tire11.2-24
Rear tire16.9-30
Full dimensions and tires ...

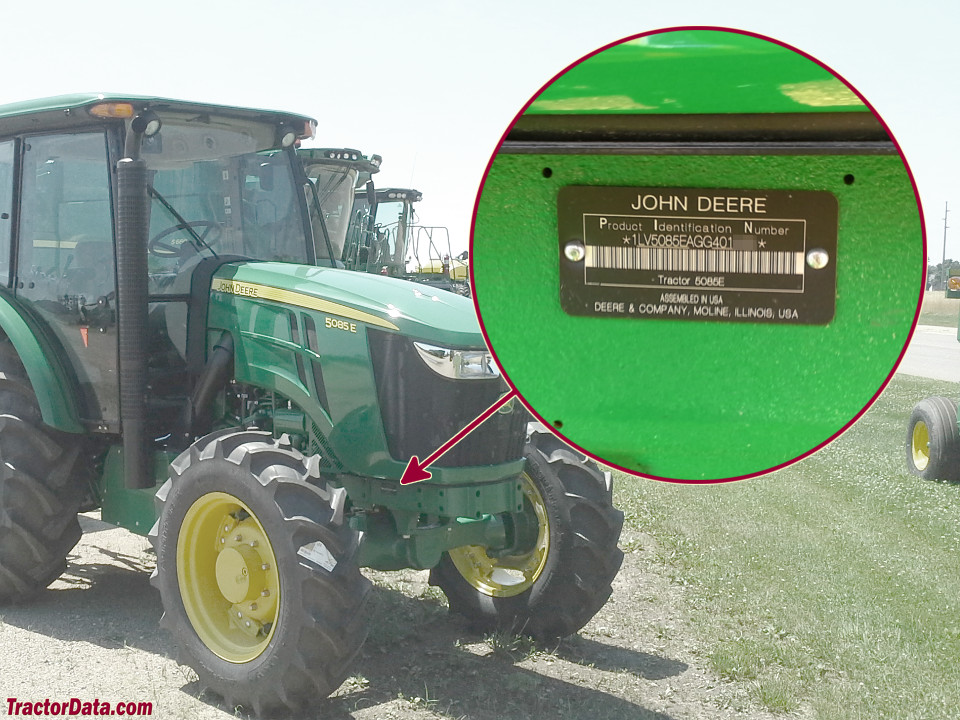

5085E Serial Number Location
John Deere 5085E serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References
5085E references literature
5E Utility Tractors published in 2018, by John Deere
