John Deere 5085E Engine


John Deere 5085E tractor photo
2013 - 2017
Model year
5E Series
Utility tractor
Series map:
5085E
5100E
85.0hp
100.0hp
Engine Detail
John Deere FJDXL04.5305
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Emissionsselective catalytic reduction (SCR)
Emission controlTier IV
Rated Power (gross)85 hp
63.4 kW
Rated RPM2500
Starterelectric
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

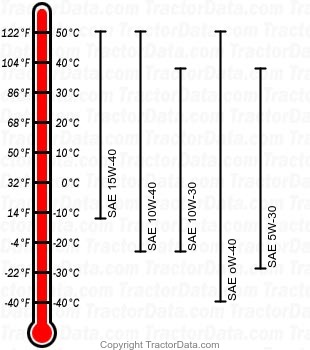

5085E diesel engine oil chart
Oil capacity12.8 qts
12.1 L
Oil change500 h
