Shibaura SP1840
|
|
| Production | |
| Manufacturer | Shibaura |
| Compact Utility tractor | |
| Shibaura SP1840 Engine | |
| Shibaura 0.9L 3-cyl diesel | |
| Fuel tank | 4.8 gal 18.2 L |
 Engine details ... | |
| Shibaura SP1840 Transmissions | |
| 6-speed synchromesh | |
| 9-speed creeper | |
 Transmission details ... |
| Shibaura SP1840 Power | |
| Engine | 17.8 hp 13.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. |
| Photos | |
| No photos of the Shibaura SP1840 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Tractor hitch | |
| Rear Type | 0 |
| Control | position control |
| Rear lift | 2866 lbs 1300 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 534@2600 |
| 806@2600 | |
| 1053@2600 | |
| Dimensions & Tires | |
| Wheelbase | 50.4 inches 128 cm |
| Weight | 1279 lbs 580 kg |
| Front tire | 5.00-12 |
| Rear tire | 8.3-20 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery volts | 12 |
| Battery AH | 65 |

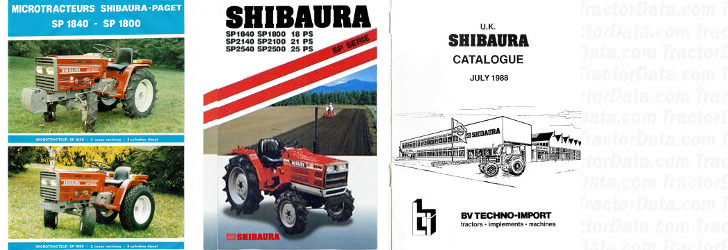

| References | |
 | |
| SP 1840 - SP 1800 published by Shibaura-Paget | |
| SP Series published by Shibaura | |
| U.K. Shibaura Catalog published in 1988, by BV Techno-Import |
