| | 1988 - 1993 |
| 2100 Series | | Orchard/Vineyard tractor | | Carraro built |
|
Series map:
2120
2130
33.1kw*
38.9kw*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed partially synchronized |
| 12-speed partially synchronized |
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and reverse
|
| Clutch | 280mm dry disc
|
| 2WD Oil capacity | 38 qts
36.0 L
|
| 4WD Oil capacity | 40.2 qts
38.0 L
|
| Four synchronized gears (1-4) in two ranges (I/II) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range. |
| Speeds |
| With 13.6-28 rear tires. Reverse speeds are 15% slower than forward. |
|
| Shift Pattern |
 |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Clutch | 280mm dry disc
|
| 2WD Oil capacity | 38 qts
36.0 L
|
| 4WD Oil capacity | 40.2 qts
38.0 L
|
| Four synchronized gears (1-4) in three ranges (I/II/III) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range. |

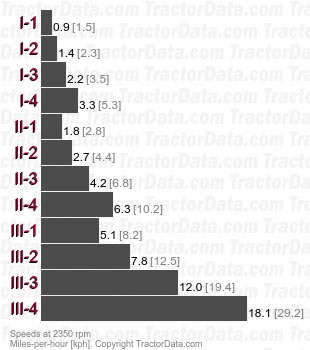

| Speeds |
| With 13.6-28 rear tires. Reverse speeds are 15% slower than forward. |
|
| Shift Pattern |
 |
