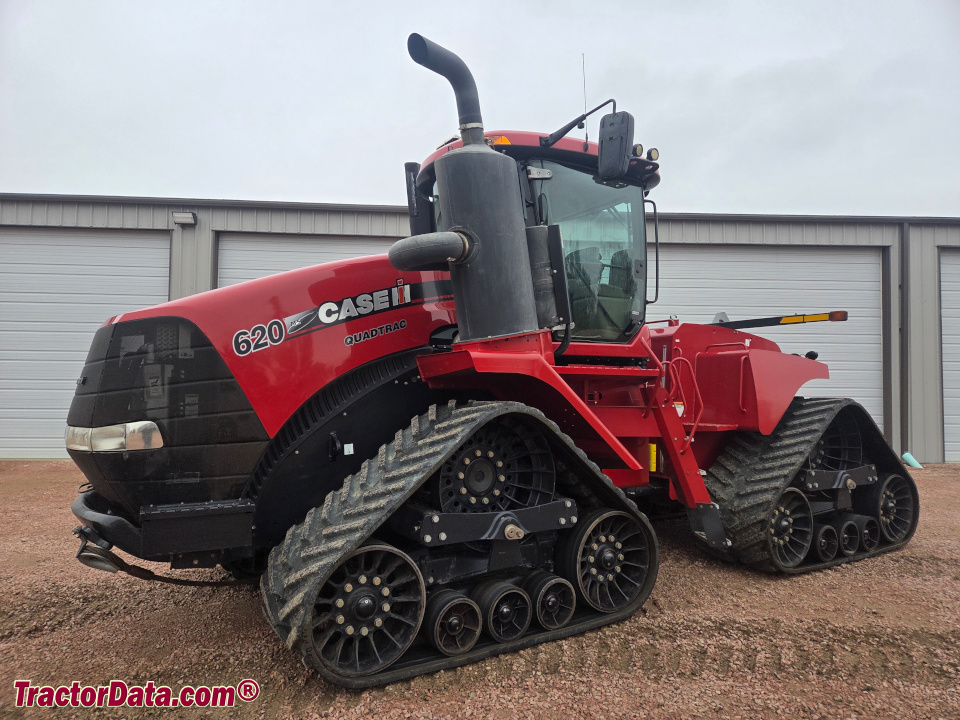

CaseIH Steiger 620 Quadtrac
| | 2014 - 2023 |
| Steiger Quadtrac Series | | Articulated Crawler tractor |
|
| Production |
| Manufacturer | CaseIH (a part of CNH)
|
| Articulated Crawler tractor |
| Built in Fargo, North Dakota, USA |
| Original price was $567,632 in 2015 |
| Variants |
| 620 | wheeled tractor
|
| 620QT | crawler tractor
|
| CaseIH Steiger 620 Quadtrac Power |
| Engine | 620 hp
462.3 kW
|
| PTO (claimed) | 473 hp
352.7 kW
|
| Drawbar (tested) | 507.20 hp
378.2 kW
|
| PTO (tested) | 539.07 hp
402.0 kW
|
 Performance test details ... |
| Mechanical |
| Drive | articulated crawler
|
| Final drives | planetary
|
| Steering | hydraulic articulated
|
| Brakes | hydraulic wet disc
|
| | engine brake *Optional.
|
| Trailer brakes | hydraulic *Optional.
|
| Surveyor Cab standard with air-conditioning. |
| Photos |
| No photos of the CaseIH Steiger 620 Quadtrac are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | pressure flow compensated
|
| Valves | 4 to 8
|
| Pump flow | 42 gpm
159.0 lpm
|
| | 57 gpm*High Flow option
215.7 lpm
|
| | 113 gpm*TwinFlow option
427.7 lpm
|
| SCV flow | 35 gpm
132.5 lpm
|
| Tractor hitch |
| Rear Type | IVN
|
| Rear lift (at 24"/610mm) | 19728 lbs
8948 kg
|
| Rear Arms | quick coupler
|
| Drawbar | Cat. 4
|
| | Cat. 5 OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 *1.75 inch shaft
|
| Engine RPM | 1000@1811
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 240
|
| Batteries | 2
|
| Battery CCA | 1000
|
| Battery volts | 12
|
| References |
 |
| Steiger 370-620 Tractors published in 2014, by CaseIH |
