Tractors > CaseIH > Steiger 540

CaseIH Steiger 540 Tests



CaseIH Steiger 540 tractor photo
2014 - 2023
Steiger 4WD Series
Four-wheel Drive (4WD) tractor
Series map:
Steiger 500
Steiger 540
Steiger 580
500.0hp
535.0hp
580.0hp
OCED Tractor Test 2096

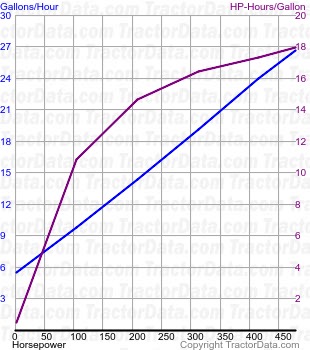

Steiger 540 fuel use from test 961
OCED Tractor Test 2096
Diesel 16-speed 4WD
September 22 - 29, 2014
Link: OCED Tractor Test 2096 file
PTO performance
Max power539.81 hp
402.5 kW
Fuel use28.2 gal/hour
106.7 l/hour
Power at rated engine speed477.75 hp
356.3 kW
Fuel use26.6 gal/hour
100.7 l/hour
Power at rated PTO speed535.05 hp
399.0 kW
Fuel use27.7 gal/hour
104.8 l/hour
Drawbar performance
Max power441.44 hp
329.2 kW
Fuel use26.6 gal/hour
100.7 l/hour
Gear 5 used for power test.
Max pull48640 lbs
22063 kg
Gear 1 used for pull test.
