John Deere 1020 VU

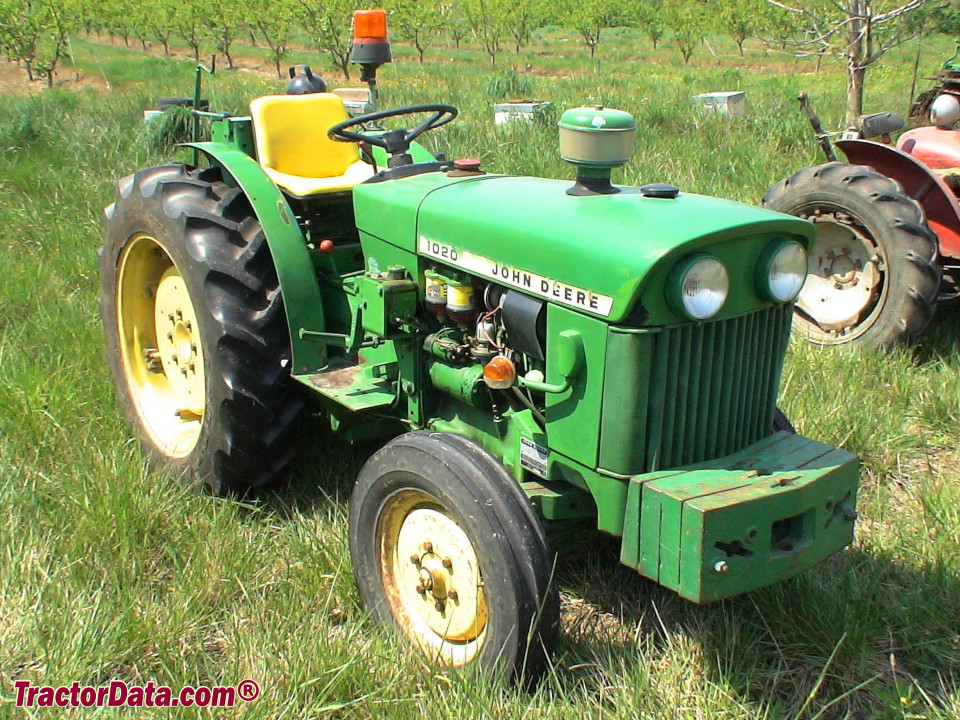

John Deere 1020 VU tractor photo
1967 - 1972
Orchard/Vineyard tractor
Series map:
1020 VU
32.8kw
Production
ManufacturerJohn Deere
Orchard/Vineyard tractor
John Deere 1020 VU Engine
John Deere 2.5L 3-cyl diesel
Engine details ...
John Deere 1020 VU Power
Engine44 hp
32.8 kW
Mechanical
Two-wheel drive
Differential lockmechanical rear
Open operator station.
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2100
Dimensions & Tires
Wheelbase63 inches
160 cm
Weight3770 lbs
1710 kg
Front tire5.50-16
Rear tire11.2/10-28
Full dimensions and tires ...
1020 VU Serial Numbers

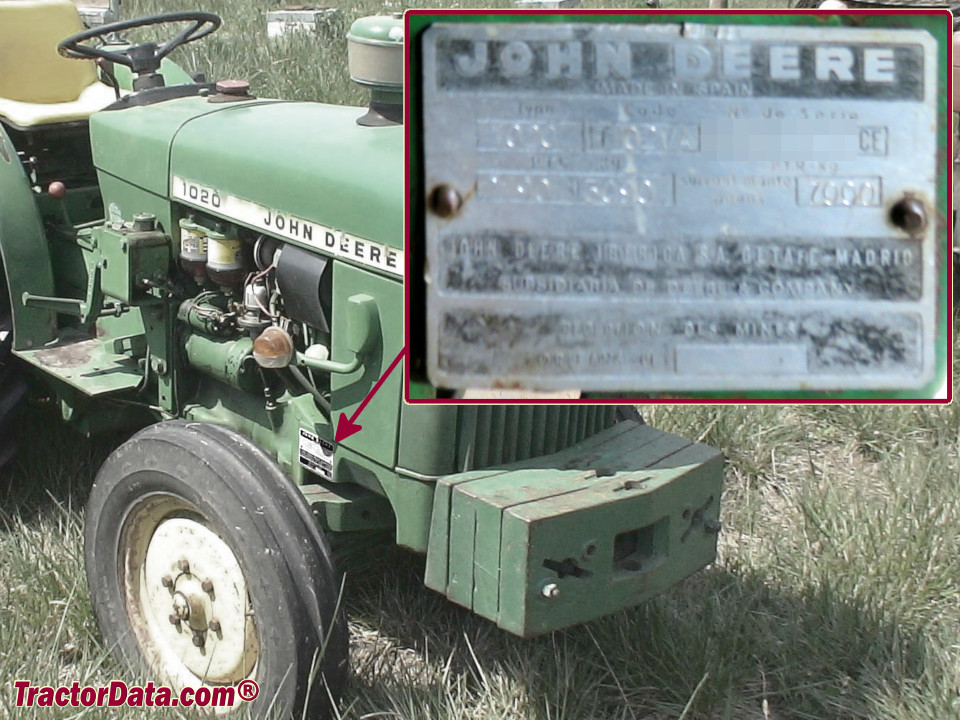

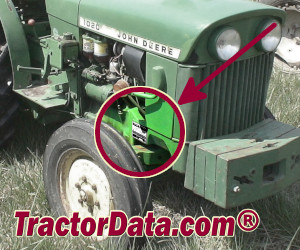

Location:Serial number plate on the right side of the 1020VU frame, above the front axle.
Electrical
Groundnegative
Battery volts12
