John Deere 7310R Transmission


John Deere 7310R tractor photo
2014 -
7R Series
Row-Crop tractor
Series map:
7290R
7310R
216.3kw
231.2kw
Transmission options
23-speed full power shift
infinitely variable transmission
Transmission
TransmissionJohn Deere e23
Typefull power shift
Gears23 forward and 11 reverse
Oil capacity169.1 qts
160.0 L
Speeds
With Group 48 rear tires. Top speeds is achieved at reduced engine rpm. F23 at 1900rpm and R11 at 1865rpm.

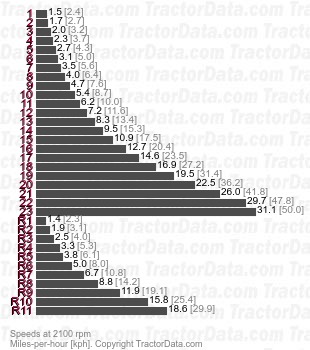

7310R e23 full power shift speeds
Transmission
TransmissionJohn Deere AutoPowr IVT
Typeinfinitely variable transmission
Gearsinfinite forward and reverse
Oil capacity169.1 qts
160.0 L
Speeds

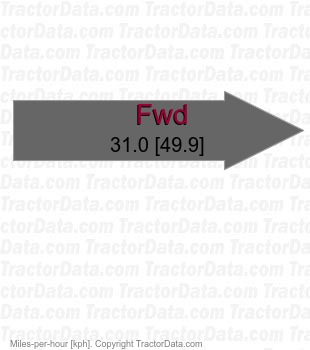

7310R AutoPowr IVT infinitely variable transmission speeds
