John Deere 7310R Engine


John Deere 7310R tractor photo
2014 -
7R Series
Row-Crop tractor
Series map:
7290R
7310R
216.3kw
231.2kw
Engine Detail
John Deere PowerTech PSS
dual turbochargers diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement549 ci
9.0 L
Bore/Stroke4.66x5.35 inches
118 x 136 mm
EmissionsStage IV
Rated Power (net)298 hp
222.2 kW
Rated Power (gross)310 hp
231.2 kW
Maximum Power (net)338.2 hp
252.2 kW
Maximum Power (gross)352 hp
262.5 kW
Fuel systemelectronic high-pressure common rail
Compression16:1
Rated RPM2100
Operating RPM1550-2100
Torque1070.9 lb-ft
1452.1 Nm
Torque RPM1600
Starterelectric
Starter volts12
Coolant capacity47 qts
44.5 L
Engine Oil

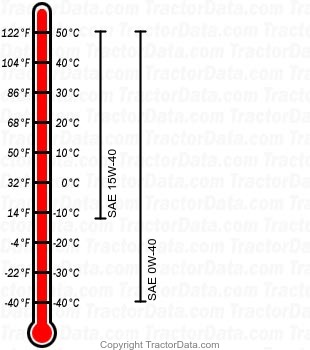

7310R diesel engine oil chart
Oil capacity28.5 qts
27.0 L
Oil change500 h
