John Deere 7290R
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 7290R Engine | |
| John Deere 9.0L 6-cyl diesel | |
 Engine details ... |
| John Deere 7290R Transmissions | |
| 23-speed full power shift | |
| infinitely variable transmission | |
 Transmission details ... |
| John Deere 7290R Power | |
| Engine (gross) | 290 hp 216.3 kW |
| Engine (net) | 278 hp 207.3 kW |
| Engine (max) | 323 hp 240.9 kW |
| PTO (claimed) | 242 hp 180.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | electro-hydraulic rear |
| linked electro-hydraulic front on TLS Plus axle with brakes OptOptional | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Cab standard with air-conditioning. AutoTrac ready | |
| Photos | |
 | |

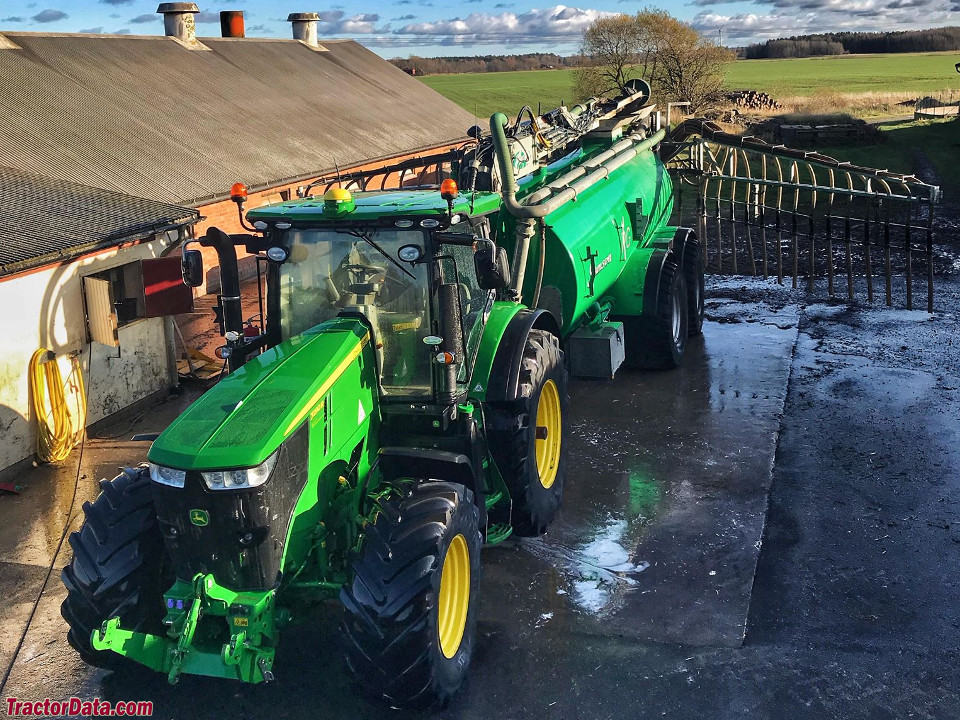

 John Deere 7290R photos... | |
| Capacity | |
| E23 Fuel | 143.7 gal 543.9 L |
| IVT Fuel | 155.6 gal 588.9 L |
| E23 G49 tires Fuel | 148.5 gal 562.1 L |
| IVT G49 tires Fuel | 160.4 gal 607.1 L |
| Hydraulic system | 42.3 gal 160.1 L |
| Hydraulics | |
| Type | closed center pressure-flow compensated |
| Capacity | 42.3 gal 160.1 L |
| Pressure | 2958 psi 204.0 bar |
| Valves | 3 to 6 |
| Pump flow | 42.8 gpm*Standard 63cc pump 162.0 lpm |
| 59 gpm*Optional 85cc pump 223.3 lpm | |
| Rear SCV flow | 34.9 gpm 132.1 lpm |
| Front SCV flow | 33.3 gpm 126.0 lpm |
| Tractor hitch | |
| Rear Type | III/IIIN |
| Control | electro-hydraulic draft sensing |
| Rear lift | 15200 lbs 6894 kg |
| 17300 lbsOptOptional 7847 kg | |
| Front Hitch | IIIN |
| Front lift | 11464 lbs 5200 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| 540/1000 (1.375) | |
| 540E/1000/1000E (1.375) | |
| Engine RPM | 540@1950 |
| 540E@ 1750 | |
| 1000@ 1950 | |
| 1000E@ 1750 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 (1.375) |
| 1000 (1.75) | |
| Engine RPM | 1000@1940 |
| Dimensions & Tires | |
| Wheelbase | 115.2 inches 292 cm |
| Weight | 23845 lbs 10816 kg |
| Front tire | 540/65R34 |
| Rear tire | 650/85R38 |
 Full dimensions and tires ... | |
| 7290R Serial Numbers | |
| Location: | Serial number plate on right side of tractor frame, above front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
| Battery Group | 31 |
