Engine Detail | |
John Deere PowerTech PVX | |
variable geometry turbocharger diesel | |
6-cylinder 24-valve | |
liquid-cooled inline | |
Displacement | 549 ci 9.0 L |
Bore/Stroke | 4.66x5.35 inches 118 x 136 mm |
Emissions | Stage IIIB |
Emission control | cooled exhaust gas recirculation |
Rated Power (net) | 278 hp 207.3 kW |
Rated Power (gross) | 290 hp 216.3 kW |
Maximum Power (net) | 310.1 hp 231.2 kW |
Maximum Power (gross) | 323 hp 240.9 kW |
Fuel system | electronic high-pressure common rail |
Compression | 16:1 |
Rated RPM | 2100 |
Operating RPM | 1550-2100 |
Torque | 962.5 lb-ft 1305.2 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 47 qts 44.5 L |

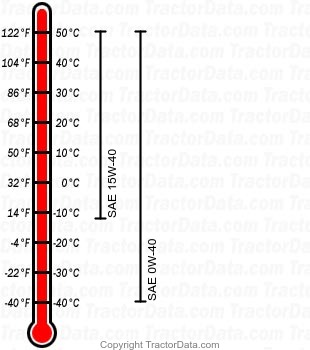

Engine Oil | |
Oil capacity | 28.5 qts 27.0 L |
Oil change | 500 h |
