John Deere 7230R

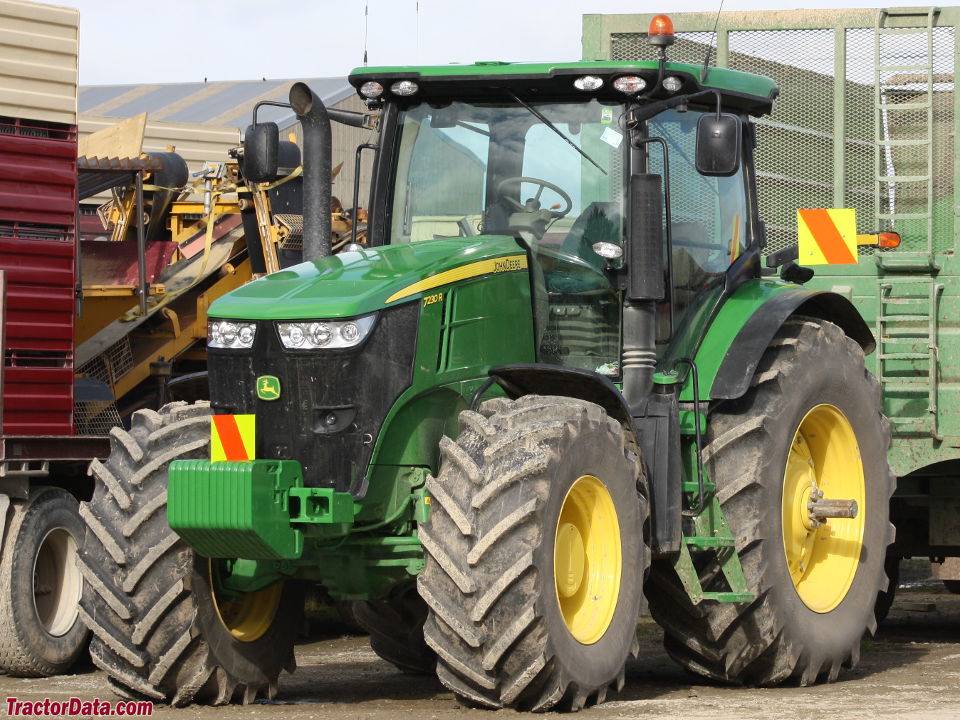

John Deere 7230R tractor photo
2014 -
7R Series
Row-Crop tractor
Series map:
7210R
7230R
7250R
156.6kw
171.5kw
186.4kw
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
John Deere 7230R Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 7230R Transmissions
20-speed partial power shift
23-speed full power shift
infinitely variable transmission
Transmission details ...
John Deere 7230R Power
Engine (gross)230 hp
171.5 kW
Engine (net)221 hp
164.8 kW
Engine (max)269 hp
200.6 kW
PTO (claimed)189 hp
140.9 kW
Mechanical
Four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
 linked electro-hydraulic front on TLS Plus axle with brakes OptOptional
Steeringhydrostatic power
Hydraulic wet disc brakes
Cab standard with air-conditioning. AutoTrac ready
Capacity
CommandQuad Fuel151.1 gal
571.9 L
E23 Fuel143.7 gal
543.9 L
IVT Fuel155.6 gal
588.9 L
Hydraulic system42.3 gal
160.1 L
Hydraulics
Typeclosed center pressure-flow compensated
Capacity42.3 gal
160.1 L
Pressure2958 psi
204.0 bar
Valves3 to 6
Pump flow31.9 gpm*Standard 45cc pump
120.7 lpm
 42.8 gpm*Optional 63cc pump
162.0 lpm
 59 gpm*Optional 85cc pump
223.3 lpm
Rear SCV flow34.9 gpm
132.1 lpm
Front SCV flow33.3 gpm
126.0 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlelectro-hydraulic draft sensing
Rear lift12000 lbs
5443 kg
 15200 lbsOptOptional
6894 kg
Front HitchIIIN
Front lift11464 lbs
5200 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
 540/1000 (1.375)
 540E/1000/1000E (1.375)
Engine RPM540@1950
 540E@ 1750
 1000@ 1950
 1000E@ 1750
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
 1000 (1.75)
Engine RPM1000@1940
Dimensions & Tires
Wheelbase115.2 inches
292 cm
Weight22893 lbs
10384 kg
Front tire540/65R34
Rear tire650/85R38
Full dimensions and tires ...
7230R Serial Numbers
Location:Serial number plate on right side of tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries2
Battery CCA925
Battery volts12
Battery Group31
