John Deere 7230R Engine


John Deere 7230R tractor photo
2014 -
7R Series
Row-Crop tractor
Series map:
7210R
7230R
7250R
156.6kw
171.5kw
186.4kw
Engine Detail
John Deere PowerTech PSX
dual turbochargers diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement415 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsStage IIIB *Stage II version available in select markets
Emission controlcooled exhaust gas recirculation
Rated Power (net)221 hp
164.8 kW
Rated Power (gross)230 hp
171.5 kW
Maximum Power (net)258.6 hp
192.8 kW
Maximum Power (gross)269 hp
200.6 kW
Fuel systemelectronic high-pressure common rail
Compression16:1
Rated RPM2100
Operating RPM1550-2100
Torque794 lb-ft
1076.7 Nm
Torque RPM1600
Starterelectric
Starter volts12
Coolant capacity41.7 qts
39.5 L
Engine Oil

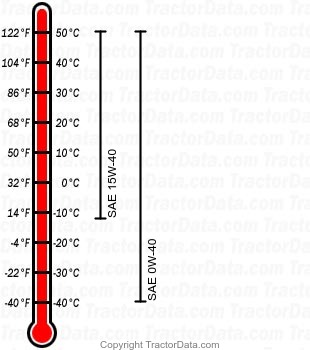

7230R diesel engine oil chart
Oil capacity25.9 qts
24.5 L
Oil change500 h
