Engine Detail | |
John Deere PowerTech PSX | |
dual turbochargers diesel | |
6-cylinder 24-valve | |
liquid-cooled inline | |
Displacement | 415 ci 6.8 L |
Bore/Stroke | 4.19x5.00 inches 106 x 127 mm |
Emissions | Stage IIIB *Stage II version available in select markets |
Emission control | cooled exhaust gas recirculation |
Rated Power (net) | 202 hp 150.6 kW |
Rated Power (gross) | 210 hp 156.6 kW |
Maximum Power (net) | 238.7 hp 178.0 kW |
Maximum Power (gross) | 249 hp 185.7 kW |
Fuel system | electronic high-pressure common rail |
Compression | 16:1 |
Rated RPM | 2100 |
Operating RPM | 1550-2100 |
Torque | 725 lb-ft 983.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 41.7 qts 39.5 L |

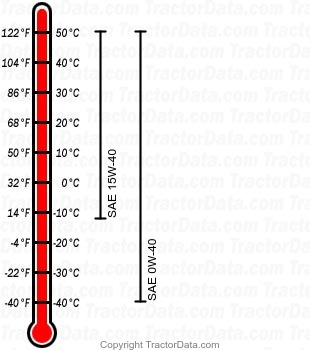

Engine Oil | |
Oil capacity | 25.9 qts 24.5 L |
Oil change | 500 h |
