Tractors > New Holland > T9.700

New Holland T9.700 Tests



New Holland T9.700 tractor photo
2014 - 2025
Model year
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.645
T9.700
580.0hp
620.0hp
OCED Tractor Test 2164A

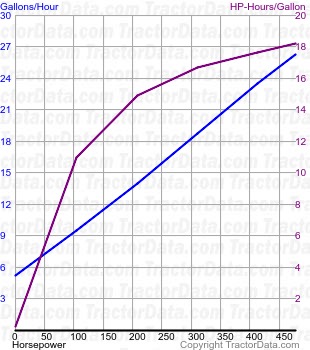

T9.700 fuel use from test 1045A
OCED Tractor Test 2164A
Diesel 16-speed 4WD
September 27 - October 5, 2016
Link: OCED Tractor Test 2164A file
PTO performance
Max power539.58 hp
402.4 kW
Fuel use28.0 gal/hour
106.0 l/hour
Power at rated engine speed477.00 hp
355.7 kW
Fuel use26.2 gal/hour
99.2 l/hour
Power at rated PTO speed535.05 hp
399.0 kW
Fuel use27.5 gal/hour
104.1 l/hour
Drawbar performance
Max power531.51 hp
396.3 kW
Fuel use30.1 gal/hour
113.9 l/hour
Gear 5 used for power test.
Max pull52098 lbs
23631 kg
Gear 2 used for pull test.
