New Holland T9.565
|
|
| Production | |
| Manufacturer | New Holland (a part of CNH) |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| Variants | |
| Steiger 500 | similar CaseIH model |
| New Holland T9.565 Engine | |
| FPT 12.9L 6-cyl diesel | |
| Fuel tank | 325 gal 1230.1 L |
| Exhaust fluid (DEF) | 42 gal 159.0 L |
 Engine details ... | |
| New Holland T9.565 Transmission | |
| 17-speed full power shift | |
 Transmission details ... |
| New Holland T9.565 Power | |
| Engine (gross) | 500 hp 372.9 kW |
| Engine (max) | 550 hp 410.1 kW |
| PTO (claimed) | 435 hp 324.4 kW |
| Drawbar (tested) | 417.77 hp 311.5 kW |
| PTO (tested) | 504.56 hp 376.3 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power articulated |
| Wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| Cab standard with air-condioning. Optional Comfort Ride cab suspension. ISOBUS compliant; Intelliview IV; IntelliSteer | |

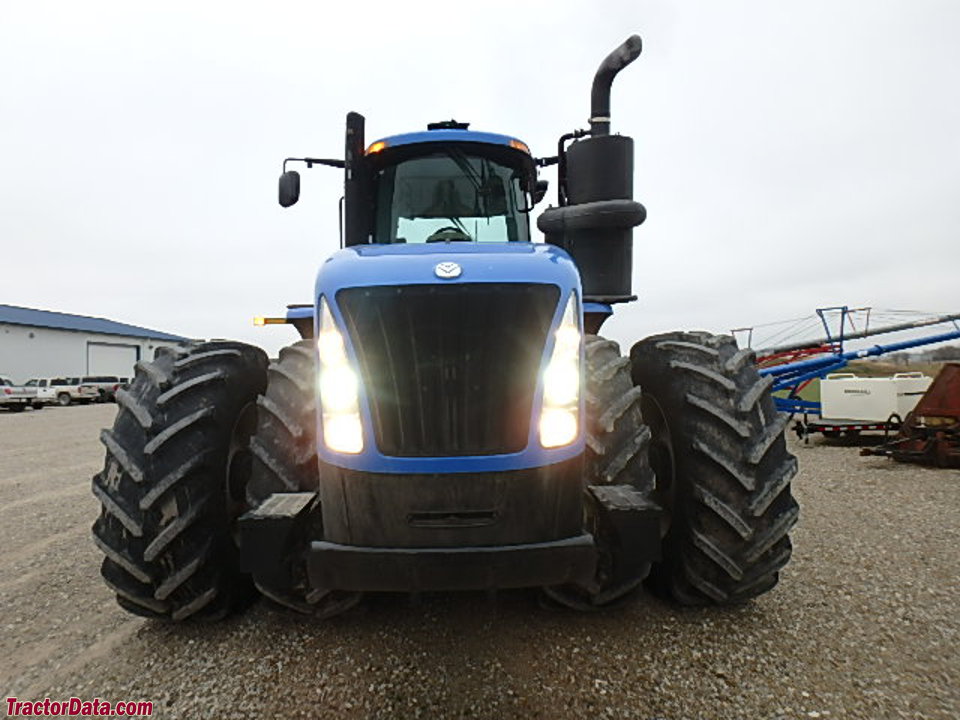

| Photos | |
 | |
 New Holland T9.565 photos... | |
| Hydraulics | |
| Type | closed center load sensing (CCLS) |
| Valves | 4 to 8 |
| Standard Pump flow | 42 gpm 159.0 lpm |
| High-Flow Pump flow | 57 gpm 215.7 lpm |
| MegaFlow Pump flow | 113 gpm 427.7 lpm |
| Tractor hitch | |
| Rear Type | IVN OptOptional |
| IIIN OptOptional | |
| Control | position control |
| Rear lift (at 24"/610mm) | 20000 lbs 9072 kg |
| Rear Arms | adjustable link ends |
| Drawbar | Cat. 4 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000 (1.75) |
| Engine RPM | 1000@1998 (early) |
| 1000@1811 (late) | |
| Dimensions & Tires | |
| Wheelbase | 148 inches 375 cm |
| Weight | 36048 lbs 16351 kg |
| Front tire | 710/70 |
| Rear tire | 710/70 |
 Full dimensions and tires ... | |
| T9.565 Serial Numbers | |
| 2014 | ZDFxxxxxx |
| 2015 | ZEFxxxxxx |
| 2016 | ZFFxxxxxx |
| 2017 | ZGFxxxxxx |
| 2018 | ZHFxxxxxx |
| 2019 | ZJFxxxxxx |
| 2020 | ZKFxxxxxx |
| 2021 | ZLFxxxxxx |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Batteries | 2 |
| Battery CCA | 1000 |
| Battery volts | 12 |
| References | |
 | |
| T9 Series published in 2018, by New Holland |
