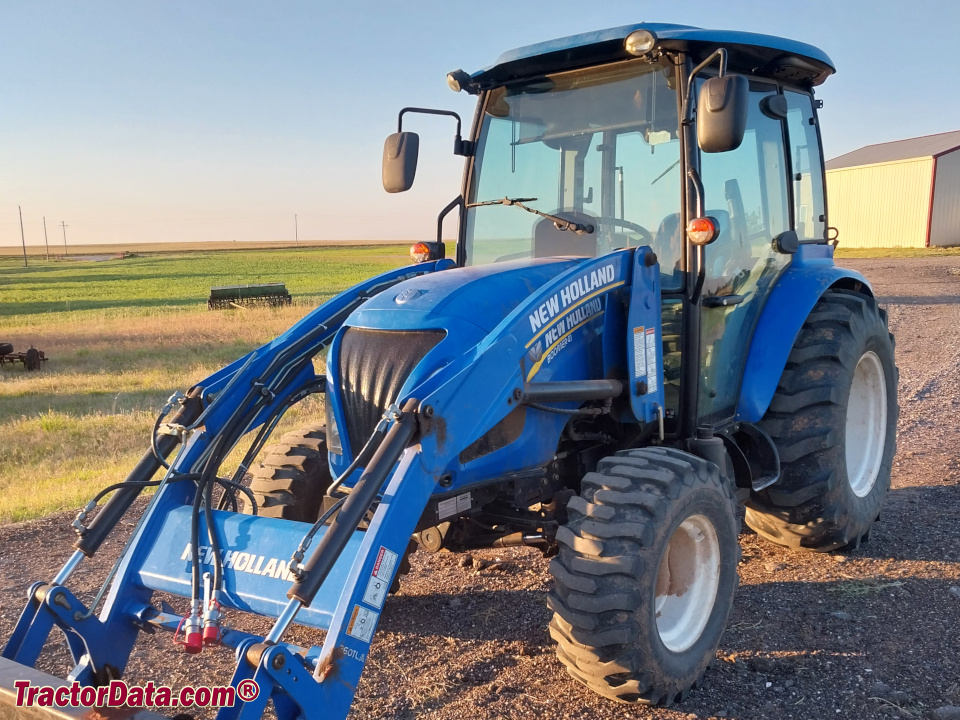

New Holland Boomer 41
| | 2014 - 2016 |
| Boomer Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | New Holland
|
| Compact Utility tractor |
| New Holland Boomer 41 Power |
| Engine (gross) | 40.2 hp
30.0 kW
|
| Gear PTO (claimed) | 31.6 hp
23.6 kW
|
| Hydro PTO (claimed) | 29.8 hp
22.2 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Steering | hydrostatic power
|
| Wet discs brakes |
| Two-post foldable ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Valves | 1 or 2
|
| Pump flow | 8.2 gpm
31.0 lpm
|
| Gear Steering flow | 4.2 gpm
15.9 lpm
|
| Hydro Steering flow | 5.3 gpm
20.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 2756 lbs
1250 kg
|
| Rear lift (at 24"/610mm) | 2116 lbs
959 kg
|
| Rear Arms | adjustable draft link ends
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | independent
|
| Mid PTO Type | 2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 85
|
| Battery volts | 12
|
| References |
 |
| Boomer Compact Tractors published in 2014, by New Holland |
