John Deere 5075E
| | 2008 - 2025 |
|
| 5E Series | | Utility tractor |
|
Series map:
5065E
5075E
67.0hp
73.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Pune, Maharashtra, India |
| Original price | $27,203 (2017 )
|
| $29,804 (2021 )
|
| John Deere 5075E Power |
| Engine (gross) | 73 hp
54.4 kW
|
| ROPS PTO (claimed) | 60.3 hp
45.0 kW
|
| Cab PTO (claimed) | 57.6 hp
43.0 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional. |
| Hydraulics |
| Type | open center
|
| Valves | 1 or 2
|
| Pump flow | 11.4 gpm
43.1 lpm
|
| Total flow | 18.2 gpm
68.9 lpm
|
| Steering flow | 6.8 gpm
25.7 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and top-link draft control
|
| Rear lift (at ends) | 3968 lbs
1799 kg
|
| Rear lift (at 24"/610mm) | 3192 lbs
1447 kg
|
| Rear Arms | fixed
|
| | telescopic draft links OptOptional
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Engine RPM | 540@2083
|
| | 540E@1588
|

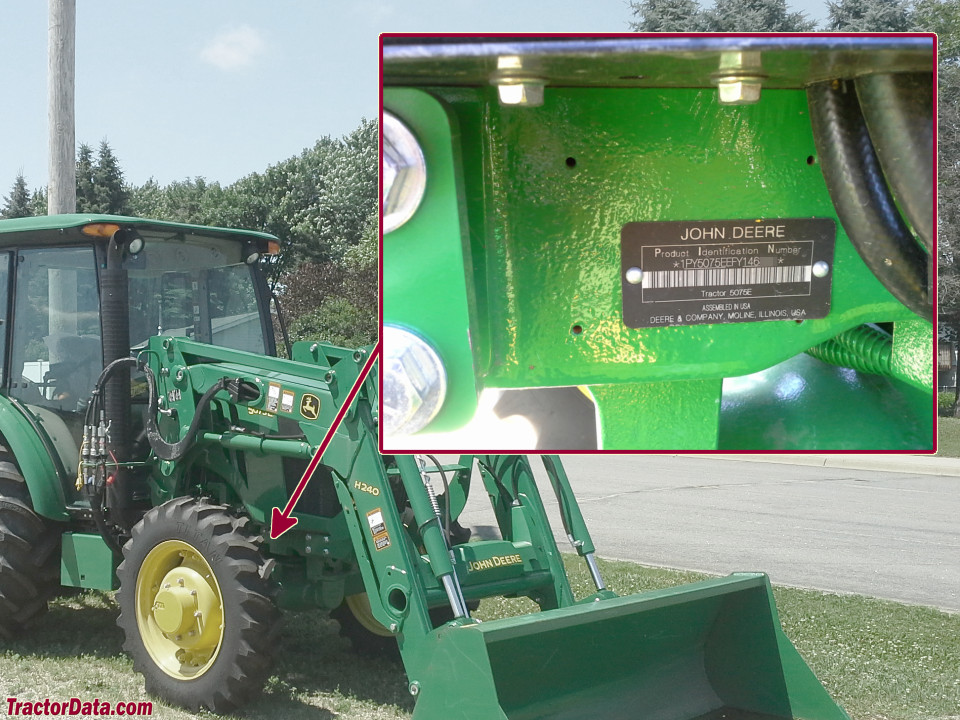

| 5075E Serial Number Location |
 |
| Serial number plate on the side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| ROPS Charging amps | 70
|
| Cab Charging amps | 110
|
| ROPS Battery CCA | 622
|
| Cab Battery CCA | 925
|
| Battery volts | 12
|
| ROPS Battery AH | 80
|
| Cab Battery AH | 95
|
