John Deere 5075E Transmission


John Deere 5075E tractor photo
2008 - 2025
Model year
5E Series
Utility tractor
Series map:
5065E
5075E
67.0hp
73.0hp
Transmission options
9-speed partially synchronized
12-speed partially synchronized power shuttle
Transmission
TransmissionTop-Shaft Synchronized (TSS)
Typepartially synchronized
Gears9 forward and 3 reverse
Clutch279.4mm dry disc
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear shifts are synchronized using the foot clutch.
Speeds
With 16.9-28 rear tires.
5075E Top-Shaft Synchronized (TSS) partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepartially synchronized power shuttle
Gears12 forward and reverse
Clutch279.4mm wet disc
Four synchronized gears (1-4) in three non-synchronized ranges (A-C). Left-hand power shuttle lever.
Speeds
With 16.9-28 rear tires. Reverse speeds are 9% faster than forward.

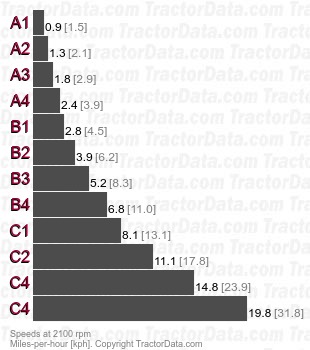

5075E PowrReverser partially synchronized power shuttle speeds
