John Deere 5065E Transmission
|
|
| Transmission options | |
| 9-speed partially synchronized | |
| 12-speed partially synchronized power shuttle |
| Transmission | |
| Transmission | Top-Shaft Synchronized (TSS) |
| Type | partially synchronized |
| Gears | 9 forward and 3 reverse |
| Clutch | 279.4mm dry disc |
| Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear shifts are synchronized using the foot clutch. | |

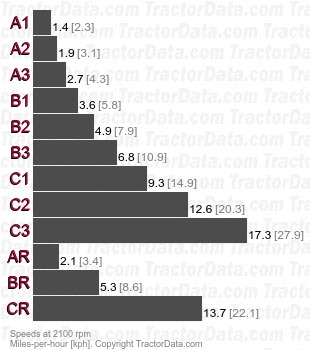

| Speeds | |
| With 16.9-28 rear tires. | |
|
| Transmission | |
| Transmission | PowrReverser |
| Type | partially synchronized power shuttle |
| Gears | 12 forward and reverse |
| Clutch | 279.4mm wet disc |
| Four synchronized gears (1-4) in three non-synchronized ranges (A-C). Left-hand power shuttle lever. | |

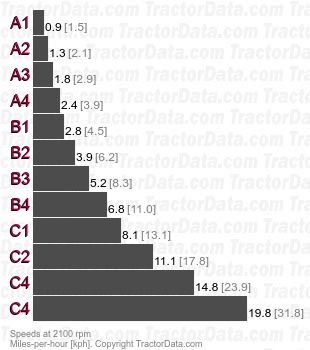

| Speeds | |
| With 16.9-28 rear tires. Reverse speeds are 9% faster than forward. | |
|
