John Deere 6130R
| | 2015 - 2021 |
| 6R Series | | Utility tractor |
|
Series map:
6120R
6130R
120.0hp
130.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 6130R Power |
| Engine (gross) | 130 hp
96.9 kW
|
| Engine (max) | 141 hp
105.1 kW
|
| PTO (claimed) | 101 hp
75.3 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | closed center
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 2 to 4
|
| Pump flow | 30 gpm
113.6 lpm
|
| SCV flow | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | electronic lower-link draft sensing
|
| Rear lift (at 24"/610mm) | 6475 lbs
2937 kg
|
| | 8457 lbsOptOptional
3836 kg
|
| Drawbar | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000
|
| | 540/540E/1000 OptOptional
|

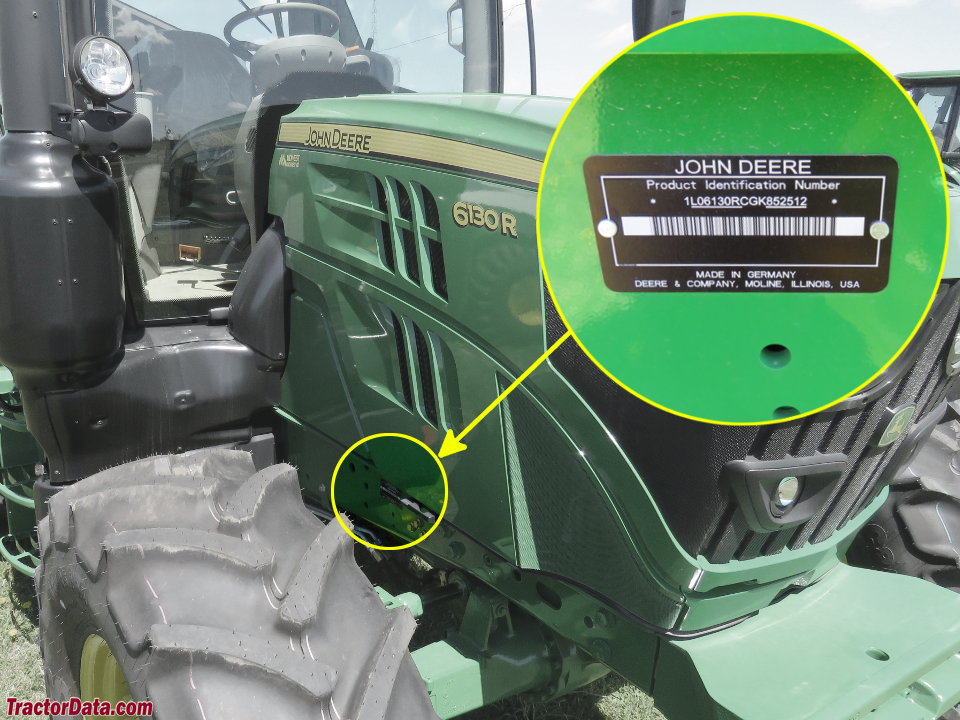

| 6130R Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| | 240 OptOptional
|
| Charging volts | 14
|
| Battery volts | 12
|
| Battery AH | 154
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 4, 2022 |
