John Deere 6120R Tests


John Deere 6120R tractor photo
2015 - 2021
6R Series
Utility tractor
Series map:
6110R
6120R
6130R
110.0hp
120.0hp
130.0hp
OCED Tractor Test 3085

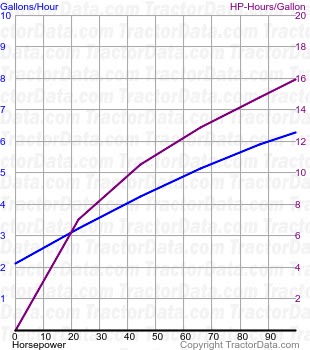

6120R fuel use from test 1141
OCED Tractor Test 3085
Diesel 24-speed 4WD
October 2017 - November 2017,
Link: OCED Tractor Test 3085 file
PTO performance
Max power113.2 hp
84.4 kW
Fuel use6.6 gal/hour
25.0 l/hour
Power at rated engine speed99.5 hp
74.2 kW
Fuel use6.3 gal/hour
23.8 l/hour
Power at rated PTO speed112.6 hp
84.0 kW
Fuel use6.6 gal/hour
25.0 l/hour
Drawbar performance
Max power90.3 hp
67.3 kW
Fuel use6.3 gal/hour
23.8 l/hour
Max pull14030 lbs
6364 kg
