John Deere 6110R
| | 2015 - 2021 |
| 6R Series | | Utility tractor |
|
Series map:
6110R
6120R
110.0hp
120.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Mannheim, Baden-Württemberg, Germany |
| John Deere 6110R Power |
| Engine (gross) | 110 hp
82.0 kW
|
| Engine (max) | 119 hp
88.7 kW
|
| PTO (claimed) | 86 hp
64.1 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | closed center
|
| Pressure | 2900 psi
200.0 bar
|
| Pump flow | 30 gpm
113.6 lpm
|
| SCV flow | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | electronic lower-link draft sensing
|
| Rear lift (at 24"/610mm) | 5582 lbs
2531 kg
|
| | 7432 lbsOptOptional
3371 kg
|
| Drawbar | Cat. 2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540/1000
|
| | 540/540E/1000 OptOptional
|

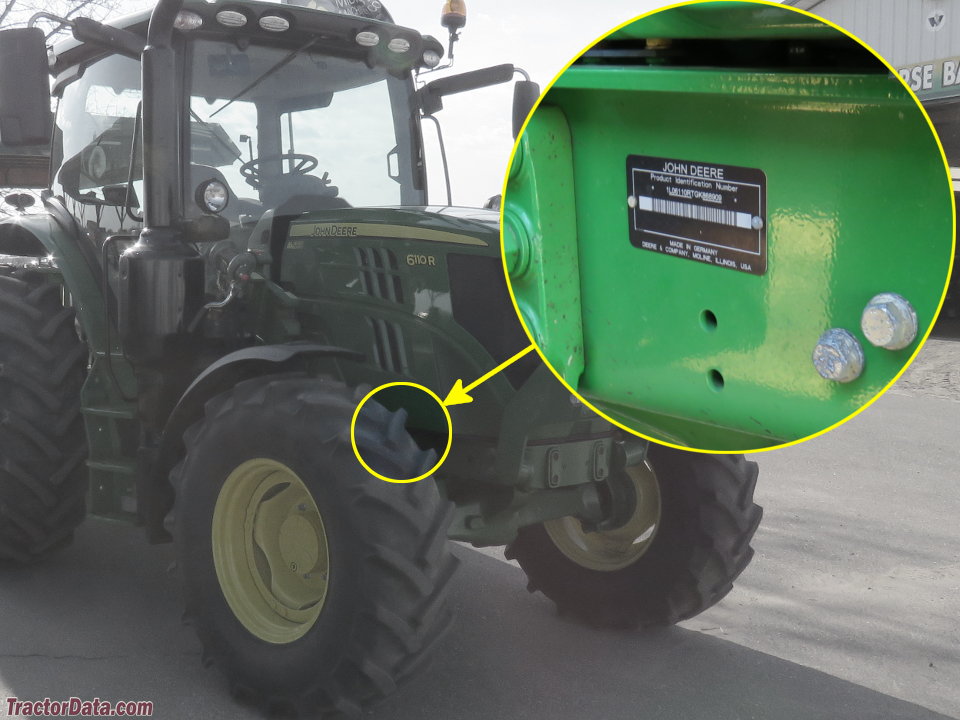

| 6110R Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| | 240 OptOptional
|
| Charging volts | 14
|
| Battery volts | 12
|
| Battery AH | 154
|
