John Deere 5500 Transmission


John Deere 5500 tractor photo
1996 - 2000
Utility tractor
Carraro built
Series map:
5400
5500
52.2kw
59.7kw
Transmission options
12-speed partially synchronized
24-speed partially synchronized
Transmission
Typepartially synchronized
Gears12 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range or direction.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

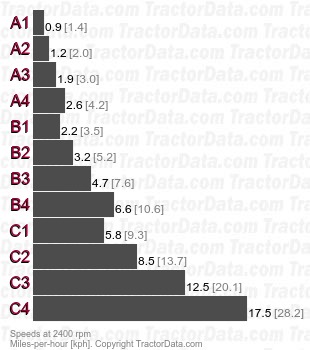

5500  partially synchronized speeds
Transmission
Typepartially synchronized
Gears24 forward and reverse
Four gears (1-4) in three ranges (A, B, C) with reverse lever and Hi-Lo shift. Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range, direction, or Hi-Lo.
Speeds
With 16.9-30 rear tires. Reverse speeds are 15% slower than forward.

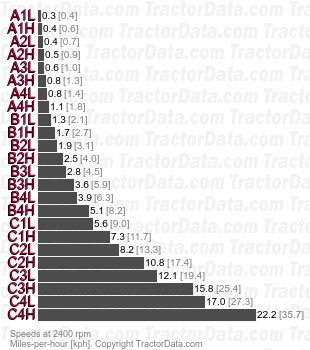

5500  partially synchronized speeds
