John Deere 5400



John Deere 5400 tractor photo
1996 - 2000
Utility tractor
Carraro built
Series map:
5300
5400
5500
41.0kw
52.2kw
59.7kw
Production
DistributorJohn Deere
ManufacturerCarraro
Utility tractor
Built in Italy
John Deere 5400 Engine
John Deere 2.9L 3-cyl
Fuel tank21.1 gal
79.9 L
Engine details ...
John Deere 5400 Transmissions
12-speed partially synchronized
24-speed partially synchronized
Transmission details ...
John Deere 5400 Power
Engine (net)70 hp
52.2 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringhydrostatic power
Wet disc brakes
Trailer brakeshydraulic OptOptional
Cab standard.
Photos
No photos of the John Deere 5400 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow11.4 gpm
43.1 lpm
Steering flow7 gpm
26.5 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Rear lift5291 lbs
2399 kg
Power Take-off (PTO)
Rear PTO Type540/540E
 540/1000
Dimensions & Tires
Wheelbase82.7 inches
210 cm
Weight5750 lbs
2608 kg
Front tire7.50-16
2WD Rear tire16.9R30
Full dimensions and tires ...
5400 Serial Numbers
Location:Serial number plate on left side of frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps40
Cab Charging amps60
Battery volts12
Battery AH100
References

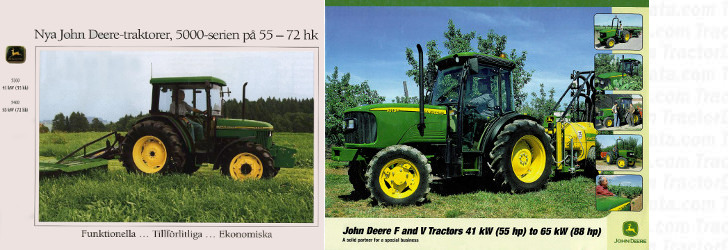

5400 references literature
5000-serien published in 1997, by John Deere
John Deere F and V Tractors published in 2006
