CaseIH JX85 Maxxima Transmission


CaseIH JX85 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX75
JX85
JX95
72.0hp
85.0hp
93.0hp
Transmission options
12-speed mechanical shuttle
20-speed creeper
Transmission
Typemechanical shuttle
Gears12 forward and reverse
Four gears (1-4) in three ranges with mechanical shuttle.

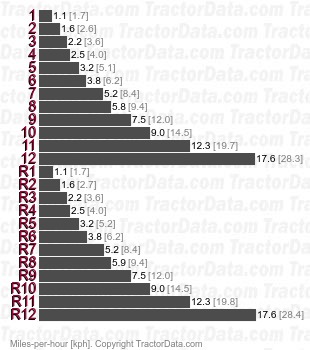

Speeds
JX85 Maxxima  mechanical shuttle speeds
Shift Pattern
CaseIH JX85 transmission controls
Transmission
Typecreeper
Gears20 forward and 12 reverse
