New Holland TZ24D



New Holland TZ24D tractor photo
2008 - 2011
TZ Series
Sub-Compact Utility tractor
Series map:
TZ24D
TZ21D
17.9kw
15.7kw
Production
ManufacturerNew Holland
Sub-Compact Utility tractor
New Holland TZ24D Engine
Shibaura 1.0L 3-cyl diesel
Fuel tank7.8 gal
29.5 L
Engine details ...
New Holland TZ24D Transmission
hydrostatic
Transmission details ...
New Holland TZ24D Power
Engine (gross)24 hp
17.9 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Two-post foldable ROPS.
Photos

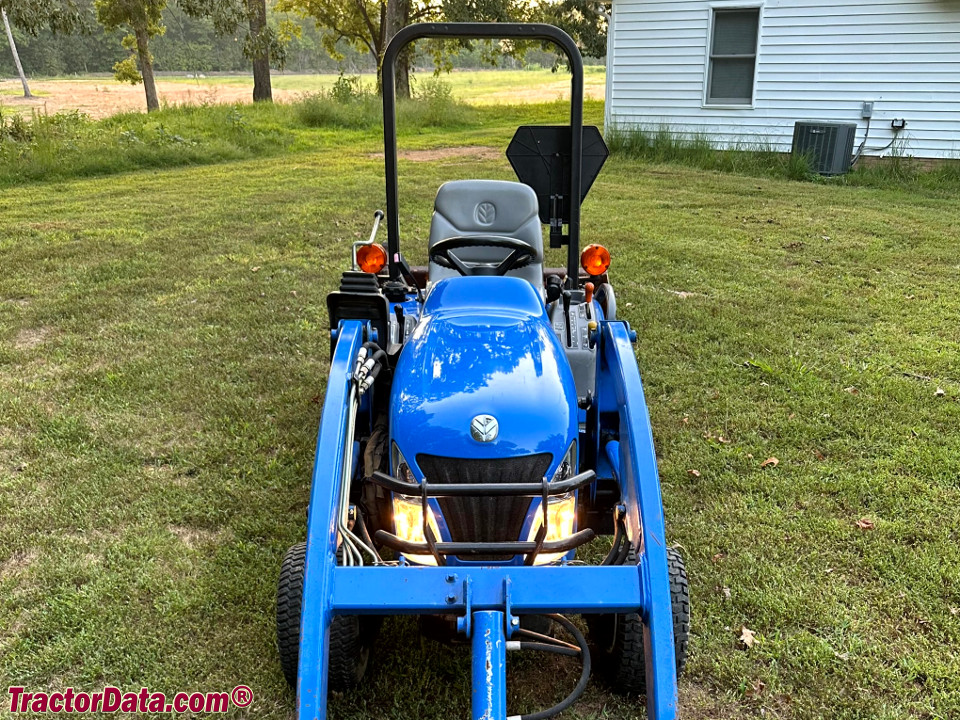

New Holland TZ24D compact utility tractor with 10LA front-end loader.
New Holland TZ24D photos...
Hydraulics
Typeopen center
Pressure1885 psi
130.0 bar
Rear valves1
Mid valves0 or 2
Pump flow3.75 gpm
14.2 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)1576 lbs
714 kg
Power Take-off (PTO)
Rear PTO Type540
Engine RPM540@2992
Mid PTOoptional
Mid PTO Type2000
Engine RPM2000@2745
Dimensions & Tires
Wheelbase55.1 inches
139 cm
Weight1460 lbs
662 kg
Front tire18x8.5-8
Rear tire26x12-12
Full dimensions and tires ...
New Holland TZ24D attachments
137 cm mid-mount mower deck
152 cm mid-mount mower deck
Attachment details ...
Electrical
Groundnegative
Battery volts12
