| | 1918 - 1921 |
| Standard-tread tractor |
|
Series map:
18-30
33.3hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Allis Chalmers |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical valve-in-head |
| Displacement | 460.7 ci
7.6 L
|
| Bore/Stroke | 4.75x6.50 inches
121 x 165 mm
|
| Fuel system | Kingston L 1.5" carburetor
|
| Air cleaner | oil bath
|
| Rated RPM | 830
|
| Coolant capacity | 40 qts
37.9 L
|

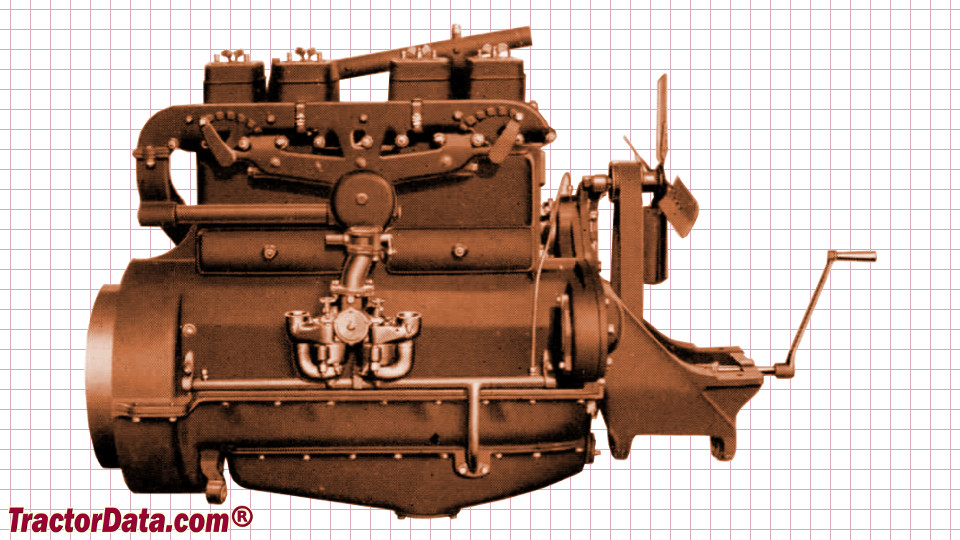

| Allis Chalmers 18-30 Engine |
 |
