| | 2012 - 2022 |
|
| 5M Series | | Utility tractor |
|
Series map:
5100M
5115M
100.0hp
115.0hp
| Transmission options |
| 16-speed power shuttle |
| 32-speed two-speed power shift |
| Transmission |
| Transmission | PowrReverser
|
| Type | power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | wet disc
|
| Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch. |

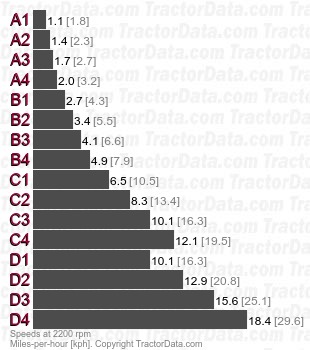

| Speeds |
| With 480/70R28 rear tires. Reverse speeds are 10% faster than forward. |
|
| Transmission |
| Transmission | PowrReverser Plus
|
| Type | two-speed power shift
|
| Gears | 32 forward and 16 reverse
|
| Clutch | wet disc
|
| Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch. |

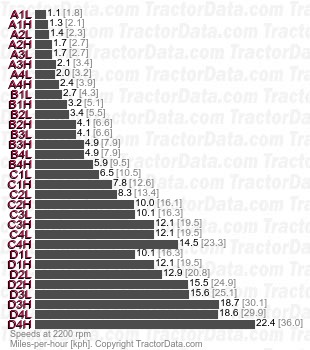

| Speeds |
| With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds. |
|
