John Deere 5085M


John Deere 5085M tractor photo
2008 - 2018
Model year
5M Series
Utility tractor
Series map:
5075M
5085M
5090M
75.0hp
85.0hp
89.2hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
John Deere 5085M Engine
John Deere 4.5L 4-cyl diesel
ROPS Fuel tank30 gal
113.6 L
Cab Fuel tank37 gal
140.0 L
Engine details ...
John Deere 5085M Power
Engine (gross)85 hp
63.4 kW
PTO (claimed)70 hp
52.2 kW
PTO (tested)72.80 hp
54.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic
Power steering
Hydraulic wet disc brakes
Isolated open operator station with foldable two-post ROPS. Optional premium open station features extended fenders and integral work lights. Standard and premium cabs available with air-conditioning.
Photos
No photos of the John Deere 5085M are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow18.4 gpm
69.6 lpm
Total flow24.7 gpm
93.5 lpm
Tractor hitch
Rear TypeII/I
Controllower-link draft sensing
Rear lift (at 24"/610mm)4600 lbs
2086 kg
 5600 lbsOptOptional
2540 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/540E
 540/540E/1000 OptOptional
Dimensions & Tires
Wheelbase92.5 inches
234 cm
Weight7500 to 8900 pounds
Front tire12.4R24
Rear tire18.4R30
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References

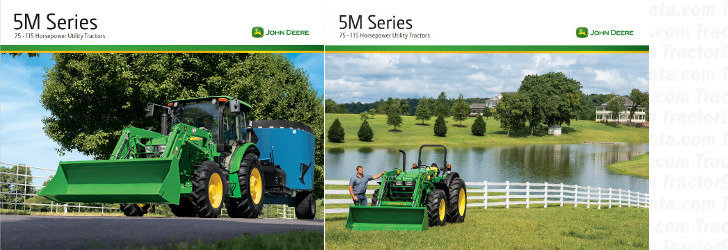

5085M references literature
5M Series published in 2015, by John Deere
5M Series published in 2016, by John Deere
