| 2008 - 2025 |
|
5M Series | Utility tractor |
|
Series map:
5075M
5085M
75.0hp
85.0hp
Transmission options |
12-speed partially synchronized |
16-speed power shuttle |
32-speed two-speed power shift |
Transmission |
Transmission | SyncShuttle
|
Type | partially synchronized
|
Gears | 12 forward and 4 reverse
|
Clutch | wet disc
|
Three gears (1-3) plus reverse (R) in four ranges (A-D). Gear shifts are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift range. |

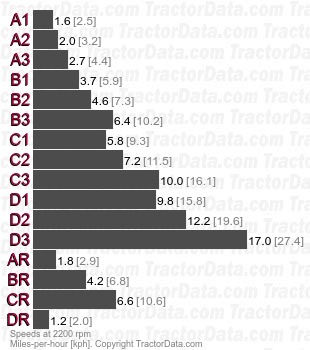

Speeds |
With 480/70R28 rear tires. |
|
Transmission |
Transmission | PowrReverser
|
Type | power shuttle
|
Gears | 16 forward and reverse
|
Clutch | wet disc
|
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle. Push-button clutch. |

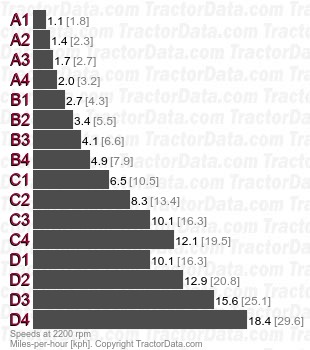

Speeds |
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward. |
|
Transmission |
Transmission | PowrReverser Plus
|
Type | two-speed power shift
|
Gears | 32 forward and 16 reverse
|
Clutch | wet disc
|
Four synchronized gears (1-4) in four synchronized ranges (A-D) with power shuttle and push-button high-low shift. Push-button clutch. |

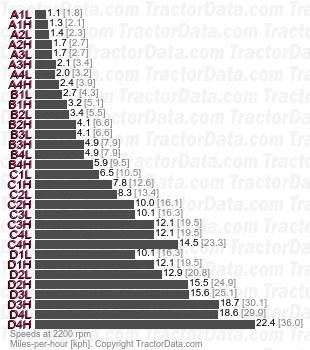

Speeds |
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward (high) speeds. |
|
